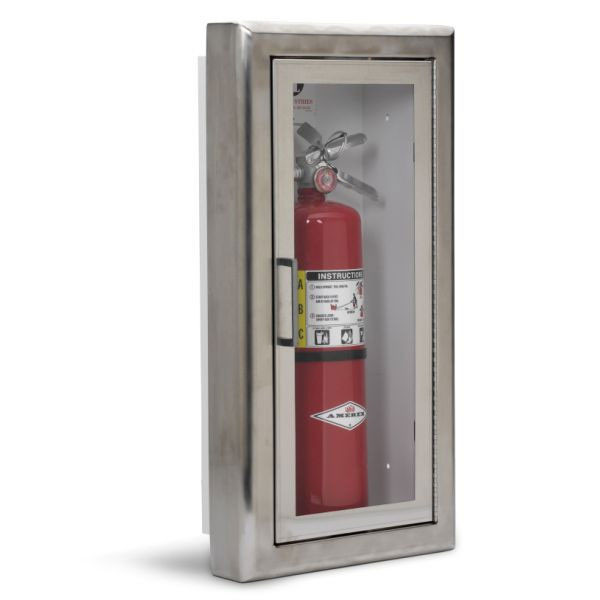

  • Cosmopolitan 1037F10
  • Cosmopolitan trimless 1014V10.
  • Cosmopolitan part number and size chart.
  • Trim styles for J.L. Industries cabinets.
  • Rough wall opening and cabinet dimension diagram.
  • Back view of Cosmopolitan cabinet showing FX2 fire-rated insulation.
  • Front/side view of Cosmopolitan cabinet showing FX2 fire-rated insulation.

Cosmopolitan Stainless Steel Trim and Door Fire Cabinets in Multiple Configurations

Item #: 09324
Quantity:
$230.00

  • Buy 6 or above and get 5% off
Normal Availability: 1-4 business days depending on options.

Product Description

J.L Industries' Cosmoplitan series of fire extinguisher cabinets have their doors and trim constructed of stylish No 4 stainelss steel. The tubs are constructed of  cold-rolled steel with a durable white powder-coat finish. The cabinet doors are flush with the trim with a 5/8" door stop are attached by a continuous hinge and are equipped with zinc-plated handle and roller catch.

These cabinets are available in a variety of trim styles and depths to match your application (see picture above). All (except trimless) have a 1-3/4" face trim on the frame and, if glazed, 1-1/4" trim on the door. Installation instructions are available, and you can determine the rough opening for the cabinet you have selected from chart shown in the pictures above.

  • Trimless Recessed - for 5/8” depth drywall or 3/4” plaster. Details are available, along with installation instructions for standard trimless and fire-rated trimless cabinets.
  • Recessed - 3/8” flat trim.
  • Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2-1/2", 3", 4" (recessed pull), 4-1/2" Rolled Edge. See figure above.
  • Surface-mount units have a square edge or optional rolled edge upon request

These cabinets are also available for fire-rated walls (FX2 series) which features foil-faced Firespan™ 90 by Thermafiber® which is attached directly to the outside of the tub. FX2 cabinets have been tested by Underwriters Laboratories® to maintain one and two hour fire-rated wall barriers in accordance with ANSI/UL-1479, ASTM E814 and ULC/Can S115 for membrane and penetration firestops. Please read the size chart above carefully to select the proper cabinet and wall opening. FX installation instructions are available.

A variety of door options are also available ranging from solid metal, to full safety glass glazing and various styles in between. See pictures above to view the general styles or download a complete list.

Doors come standard with clear acrylic glazing. A variety of other glazing options are available including various tints, safety film, tempered glass, and laminated safety glass.

Identical cabinets are the Ambassador Series (item # 09320) which have steel trim and doors and the Academy series (item # 09322) which is has stainless steel trim and doors.

This handy chart summarizes the numbering system used in J.L. Industries cabinets.  Some of the more popular cabinets are shown in the pictures above; these include the 1013G10, 1013V10, 1015F10, 1016S21, 1017F10, 1017S21, and 1815v10.

diagram for JL part number system

We supply the entire J. L. Industries line of cabinets; if you can not find what you're looking for here on our web site, simply contact us.



Warranty Information

Includes a manufacturer's one year warranty after date of shipment against defects in materials and workmanship. JL Industries will replace or repair any product found defective within this period. No other warranty expressed or implied is valid. Manufacturer’s warranty, terms and conditions apply in all cases.

Other Details

Manufactured in: USA
