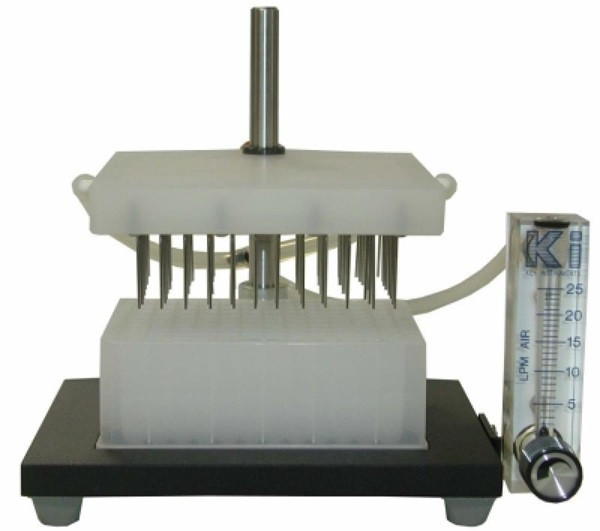

Glas-Col' s basic non-heated evaporator system is a low-cost solution for the concentration of microplate extractions and reactions. Available in 11, 15, 20, 24, 48, 96, and 384 place/plate configurations, each stainless steel needle delivers an equal flow of nitrogen or other gas to each well. The 24 place and 96 well pictures are shown above.
A fine needle valve flow permits the user to deliver 0 to 25 LPM to the equalizer manifold which provides each well with consistent evaporation. The needle height is easily adjustable to fit most sizes and capacities of microplates. The body is constructed of polypropylene and can be sterilized in an autoclave.
Dimensions: 7" w x 5.5" d x 7.7" h (17.8 x 14 x 19.6 cm). Weight: 5 lb (2.27 kg).
