- Guardian G1791 WideArea™ Eye/Face Wash, Wall Mounted, All-Stainless Steel
)
Product Description

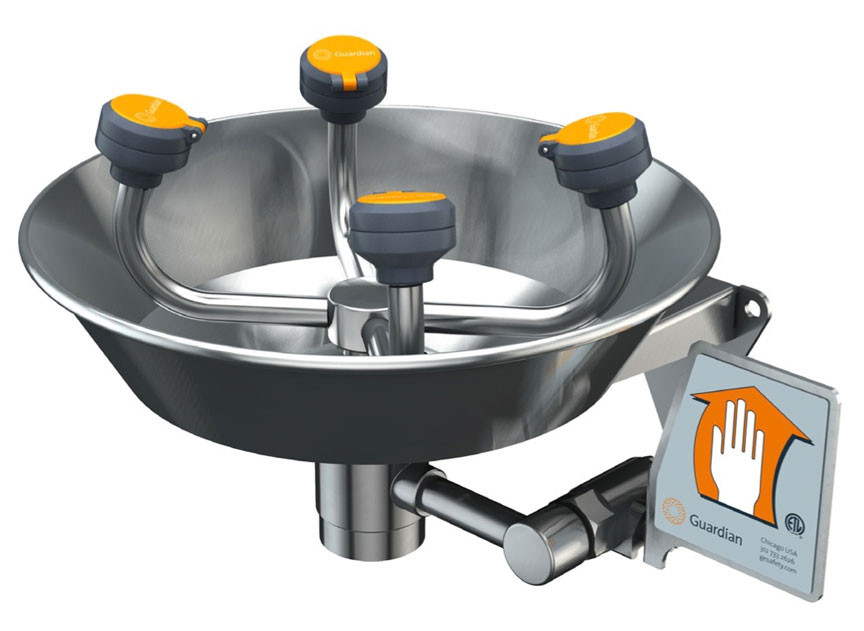

The Guardian Equipment G1791 is a completely stainless steel eye/face wash for superior corrosion resistance. The G1781 is similar but uses two larger FS-Plus™ spray heads to wash the eyes and face. The G1891 is also similar but has two GS-Plus™ spray heads and washes only the eyes. Additional corrosion-resistant and ADA-compliant models are also available.
| Features | Options |
|
Application: WideArea™ eye/face wash for wall mounting. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and clean room applications. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face. Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals. Bowl: 11-1/8" diameter stainless steel. Mounting: Heavy duty stainless steel wall bracket. Supply: 1/2" NPT female inlet. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. |
BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated. T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection. TP 1 1/2" OD chrome plated brass tailpiece. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: G1791 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. This item ships in a box approximately 14" x 14" x 12" (35.6 x 35.6 x 30.5 cm) weighing approximately 10 pounds (4.5 kg).
Warranty Information
2-year manufacturer limited warranty.
