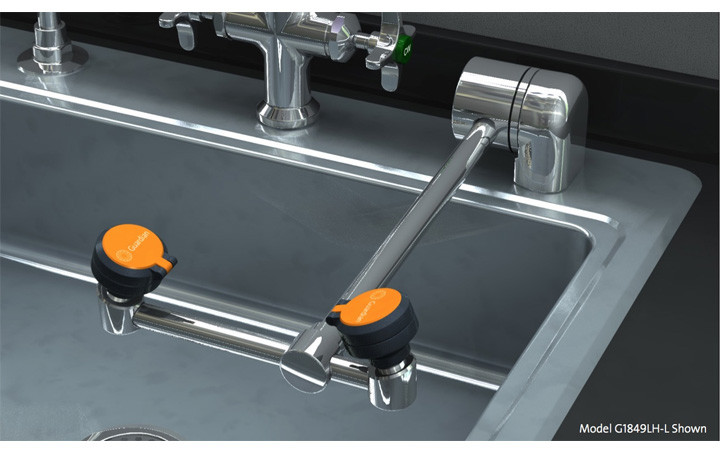

  • A photograph of a Guardian G1849LH-L eyewash mounted on the counter behind a sink (sink not included).
  • A diagram showing the mounting configurations of the Guardian G1849. Top row (left to right): G1849L, G1849, G1849R. Bottom row: (left to right): G1849LH-L, G1849LH, G1849LH-R.

Guardian G1849 Eyewash, Rear Deck Mount, AutoFlow™ 90º Swing-Down

Item #: G1849
Quantity:
$538.50

Normal Availability: 1-2 business days

Product Description

The Guardian Equipment G1849 eyewash mounts to the deck at the rear of your existing sink and swivels out of the way when not needed. These units are available in right and left-handed configurations, each of which has three offset options so as not to interfere with your faucet or operations. The sink is not included.  Similar models are the G1805 which mounts to the deck next your sink and the G1848 which mounts on the wall behind the sink. ADA-compliant and all-stainless steel models are also available.

Features Options

Application: AutoFlow™ eyewash for mounting on the counter behind your existing sink. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS plug-type valve with Teflon® coated O-ring seals. Swinging head assembly down from storage to operational position opens orifice and activates water flow. Unit remains in operation until spray head assembly is returned to storage position.

Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.

Mounting: Valve is installed in Type 316 stainless steel housing. Unit mounts on countertop behind sink. Furnished with mounting hardware for securing unit to counter.

Construction: Polished chrome plated brass.

Supply: 1/2" NPT male inlet.

Waste: Polished chrome plated brass.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1849 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head.

All Guardian items are manufactured in the USA. This item ships in a box weighing approximately 8 pounds (3.6 kg) and measuring 23" x 13" x 7" (58 x 33 x 18 cm).

Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
