Ohaus Navigator NVT Portable Electronic Scales w/ Touchless Sensors, Legal For Trade

Item #: H-NAVIGATOR-NVT
Quantity:
$445.00

Availability: 2-3 business days

Product Description

The Ohaus Navigator series of portable scales are the only ones in its class with touchless infrared (IR) sensors that free up your hands and avoid contamination. With a one second stabilization time, superior overload protection, and multiple application modes such as counting, percent weighing, checkweighing, display hold and accumulation/ totalization, these balances are your best choice for quality control, inventory management, shipping and receiving, recipes and formulation, portioning and other popular applications all at a modest price!

The NVT Series comes in standard models as well as Legal For Trade models with approvals by the NTEP (for use in the US) and Measurement Canada (for use in Canada). NOTEthese approvals to do not automatically mean these scales are approved for use in your jurisdiction; we suggest contacting your local Weights and Measurements authority before purchase.

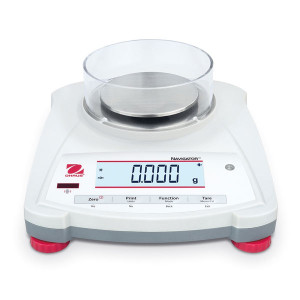

Additional models in the Navigator line include the Navigator NV series which has lower mass capabilities and the Navigator NVL series which lacks the trade certification.

These balances feature an internal rechargeable battery which operates up to 100 hours, a power adapter, security bracket, 7-digit bright backlit LCD display with large 078" (20 mm) digits, skid-resistant leveling feet, an up-front level indicator, menu lock switch, a transportation lock to protect the load cell, and, of course, two IR sensors that may be programmed to operate up to 36 combinations of operations without touching the keys. There are also four raised mechanical keys with tactile feedback. With the optional network connection kit, you can connect these balances to peripherals for printing and data collection.

These balances display weights in Gram, Kilogram, Pound, Ounce (decimal or fractional), Pound:Ounce (decimal or fractional), Ounce Troy, Grain, Newton, Carat, Pennyweight, Hong Kong Tael, Taiwan Tael, Singapore Tael, Tical, Tola. Seriously, we never heard of some those, ourselves, but they're in there!

Model (Standard) NVT1601/1 NVT3201/1 NVT6401/1 NVT10001/1 NVT16000/1
Capacity x Max Readability (g) 1,600 g x 0.1 g 3,200 g x 0.2 g 6,400 g x 0.5 g 10,000 g x 0.51 g 16,000 g x 1 g
Capacity x Max Readability (lb) 3.2 lb x 0.0002 lb 6.4 lb x 0.0005 lb 16 lb x 0.001 lb 22 lb x 0.002 lb 32 lb x 0.002 lb
Capacity x Max Readability (oz) 51 oz x 0.005 or 1/8 oz 102 oz x 0.01 or 1/8 oz 256 oz × 0.01 or 1/8 oz 352 oz × 0.05 or 1/8 oz 512 oz × 0.05 or 1/8oz
Capacity x Max Readability (kg) 1.6 kg x 0.0001 kg 3.2 kg x 0.0002 kg 6.4 kg x 0.0005 kg 10 kg x 0.0005 kg 16 kg × 0.001 kg
Displayed Resolution (g) 1:16000 1:16000 1:16000 1:20000 1:16000
Model (Legal for Trade) NVT1601N/1 NVT3200N/1 NVT6400N/1   NVT16000N/1
Capacity x Max Readability (g) 1,600 g x 0.5 g 3,200 g x 1 g 6,400 g x 2 g   16,000 g x 5 g
Capacity x Max Readability (lb) 3.2 lb x 0.001 lb 6.4 lb x 0.002 lb 16 lb x 0.005 lb   32 lb x 0.01 lb
Capacity x Max Readability (oz) 51 oz x 0.02 oz 102 oz x 0.05 oz 256 oz × 0.1 oz   512 oz × 0.2 oz
Capacity x Max Readability (ozt) 46 oz x 0.02 oz 93 oz x 0.05 oz 233 oz × 0.1 oz   466 oz × 0.2 oz
Capacity x Max Readability (ct) 8,000 ct x 5 ct 16,000 ct x 5 ct 32,000 ct x 10 ct   80,000 ct x 50 ct
Capacity x Max Readability (kg) 1.6 kg x 0.0005 kg 3.2 kg x 0.001 kg 6.4 kg x 0.002 kg   16 kg × 0.005 kg
Displayed Resolution (g) 1:32000
Repeatability / Linearity 0.1 g / ±0.2 g 0.2 g / ±0.4 g 0.5 g / ±1 g   1 g / ±2 g
Pan Size (W x D) 9 x 6.9 in / 230 x 174 mm

Dimensions 2.9" h x 8" w x 11.1" d (74 x 204 x 282 mm). Weight: 4.3 lb (2.0 kg).

Literature available: Ohaus Navigator NV, NL, and NVT series summary sheet.

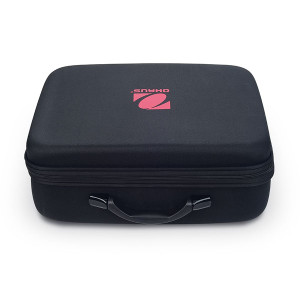

Accessories: A variety of accessories and replacement parts are available. These include in-use covers (item # H-NV-COVER), a carrying case (item # H-NV-CASE), an anti-theft device (item # H-80850000), replacement battery (item # H-83032106), an RS232 interface kit (item # H-83032107), USB interface kit (item # H-83032108), and Ethernet interface kit (item # H-83032109)
