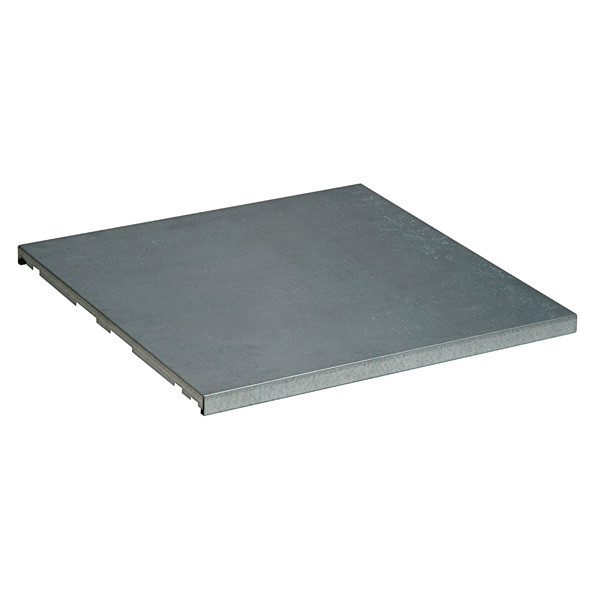

Metal Shelves For Eagle X-Series Metal Cabinets Manufactured After Mid-2019

Item #: 02383
Quantity:
$21.00

Availability: 3-4 business days

Product Description

Eagle shelves will hold up to 350 lb (159 kg) of uniformly distributed load.  Select the proper shelf model for your cabinet. * Note: 90 gallon, some 60-gallon, and deep space cabinets indicated by asterisks require two shelves per level so be sure to order those in multiples of two. In the table below, the parentheses around the prefixes and suffixes indicate two versions, for example 1925X(LEGS) refers to both the 1925X and 1925XLEGS models.

NOTE: These shelves will only work with Eagle metal cabinets that have an "X" in their Eagle model number. If your Eagle model number does not contain an "X" (was manufactured before mid-2019), these shelves will NOT work in your cabinet. See item # 02382 for shelves for older Eagle cabinets.

Item # Eagle Model # Works w/ These Eagle Model Cabinets
02383-29935 29935 1900X, 1901X, 1903X, 1904X, CRA1903X, CRA1904X
02383-29936 29936 1905X(LEGS), 1906X(LEGS), 1924X(LEGS), 1925X(LEGS), 1923X, 1946X*, 2310X, 4610X*, PEST24X, PEST25X, CRA1909X
02383-29937 29937 ADD14X, ADD15X, 1930X, 1932X(LEGS), 1945X, 1947X(LEGS), 1964X*, 1992X(LEGS)*, 3010X(LEGS), 4510X(LEGS), 6410X*, 9010X(LEGS)*, PI30X, PI32X(LEGS), PI45X, PI47X(LEGS), PI3010X, PI4510X, HAZ1992X, HAZ9010X, PEST32X, PEST4510X
02383-29938 29938 1975X(RED), 1976X(RED), PI77X, PI7710X
02383-29939 29939 1970X, 1971X, CRA72X
02383-29944 29944 6010X(LEGS), CRA6010X, PEST6010X, PI6010X, YPI6010X, 1962X(LEGS), CRA62, PEST62X, PI62X(LEGS), YPI62X, YPI62XLEGS, 6110X, 1961X
02383-29946 29946 (HAZ)1926X, (HAZ)2610X
02383-29947 29947 (HAZ)1955X, (HAZ)5510X
Eagle Model # Width Depth Height Weight Shipping Weight
29935 13.375" (340 mm) 13" (330 mm) 1.44" (36.5 mm) 2 lb (0.9 kg) 4 lb (1.8 kg)
29936 19.625" (498 mm) 14" (356 mm) 1.44" (36.5 mm) 3.8 lb (1.7 kg) 5 lb (2.3 kg)
29937 39.375" (1,000 mm) 14" (356 mm) 1.44" (36.5 mm) 7.3 lb (3.3 kg) 8 lb (3.6 kg)
29938 39.375" (1,000 mm) 8.625" (219 mm) 1.44" (36.5 mm) 5.3 lb (2.4 kg) 7 lb (3.2 kg)
29939 31.56" (802 mm) 18" (457 mm) 1.44" (36.5 mm) 7 lb (3.2 kg) 8 lb (3.6 kg)
29944 30.375" (772 mm) 29" (737 mm) 1.44" (36.5 mm) 8.5 lb (3.9 kg) 12 lb (5.4 kg)
29946 30.375" (772 mm) 14" (356 mm) 1.44" (36.5 mm) 6.5 lb (2.9 kg) 7 lb (3.2 kg)
29947 55.375" (1,407 mm) 14" (356 mm) 1.5" (38.1 mm) 10 lb (4.5 kg) 17 lb (7.7 kg)

NOTE: These shelves will only work with Eagle metal cabinets that have an "X" in their Eagle model number. If your Eagle model number does not contain an "X" (was manufactured before mid-2019), these shelves will NOT work in your cabinet. See item # 02382 for shelves for older Eagle cabinets.

Other Details

Manufactured in: USA
