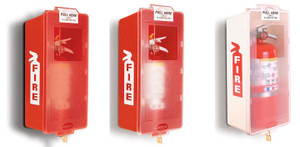

Brooks Mark I Jr series fire extinguisher cabinets are injection molded of tough and durable impact resistant ABS plastic, making them dent, rust and corrosion proof. There is no glass to be broken, no special tools required, and no breaker bar to get lost or stolen. Comes complete with brass lock and all labels.
These cabinets fit ABC and BC-style fire extinguishers under 5 lbs. The cabinet is available in your choice of a red or white tub with a translucent red or clear cover. Only the red cabinet w/ red cover is rated for outdoor use.
In an emergency, the user pulls down on the front cover to release the extinguisher. The cover will then need to be replaced (covers are sold individually). For maintenance and inspection, the cover can be opened without damage by unlocking it. Replacement cabinet decals (item # 00031), cover decals (item # 00037), and padlocks (item # 09435) are also available.
Weight: 3.8 lb (1.7 kg). The replacement covers measure 8-7/8" w x 19.25" h (22.5 x 49 cm). Cabinet dimensions:
|Minimum Interior Dimensions||Maximum Exterior Dimensions*|
|16-1/2" (419 mm)||8" (203 mm)||5-1/4" (133 mm)||19-1/2" (495 mm))||8-3/4" (222 mm)||5-5/8" (143 mm)|
*with the cover installed.
