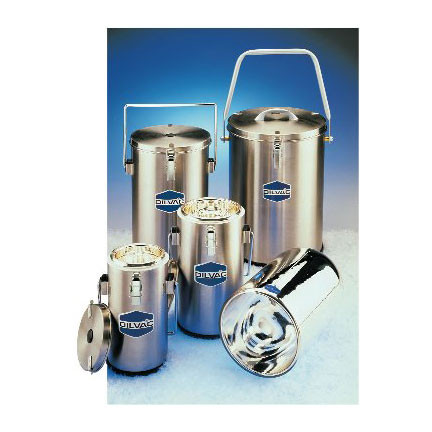

DILVAC Dewar flasks are for the storage and transport of liquified gases such as nitrogen or helium as well as Dry Ice. These flasks are constructed of double-walled and silvered borosilicate glass which is vacuum pumped before sealing to minimize thermal transfer and ensure a long cryogen holding time. Each glass component is wrapped in a corrosion-resistant stainless steel case to resist damage, and comes with a bail-style handle for easy carrying. Each also includes an insulated vented lid which can be secured with the included lid clamp to minimize spillage of the contents during transport while ensuring the pressure release necessary with such systems.
Typical applications include transport of cryogens as well as cooling traps on Schlenk and high-vacuum manifolds. We also offer the same flasks but with a with an attractive blue metal shell (item # 25000) as well as a lineup of low-profile Dewars which are ideal for reaction vessels such as round-bottom flasks (item # 25002).
These Dewars are available in three separate sizes:
|Item #||Capacity (L)||Overall Diameter||Overall Height||Internal Diameter||Internal Depth||Shipping Weight||Holding Time (hr)|
|25001-010||1||4.5 in (116 mm)||9 in (228 mm)||3.3 in (85 mm)||7.2 in (185 mm)||5 lb (2.3 kg)||38|
|25001-020||2||5.6 in (142 mm)||10.6 in (268 mm)||4.2 in (106 mm)||8.1 in (205 mm)||5 lb (2.3 kg)||48|
|25001-045||4.5||7.2 in (182 mm)||13.8 in (350 mm)||5.9 in (150 mm)||11.0 in (280 mm)||10 lb (4.5 kg)||54|
Application note: Cryogenic work presents a number of safety hazards which can result in severe injury or death if not properly addressed. Please consult the SDS HyperGlossary entry on cryogens for additional information and general precautions.
