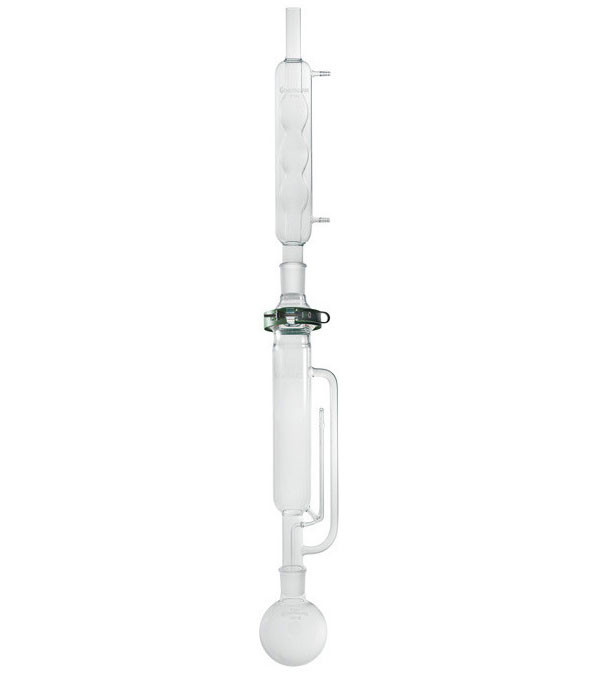

  • A photograph of jumbo Soxhlet Extraction Apparatus assembled.
  • A closeup photograph of the bottom of the extractor component.
  • A photograph of the entire extractor (left) and condenser (right) components.
  • A photograph of the VG-1372-TL thimble for the 5,000 mL extractor.

Soxhlet Extraction Apparatus, Jumbo

Item #: CG-1373
Quantity:
$1,470.00

Normal Availability: 1-3 business days

Product Description

These units make tasks such as fullerene soot or essential oil extraction much, much easier! This Jumbo Soxhlet extraction apparatus is equipped with a glass flange at the top of the extractor that is formed with a groove in the flat portion of the mating surface to accept a Teflon®-covered silicone o-ring, permitting grease-free assembly. The adapter between the condenser and extractor has a top outer joint and a glass flange which attaches to the extractor body with a CG-141 stainless steel clamp.

This complete apparatus consists of a condenser, extractor, round bottom flask, adapter, Teflon® covered O-ring and clamp. Teflon® sleeves, heating mantles, and temperature controls must be ordered separately, of course. Glass thimbles are NOT part of the complete unit - these are special order, non-returnable items that are built on demand. The glass thimbles are similar to item # CG-1372 but have an extra coarse porosity frit. We are unaware of a commercial source for paper or cellulose thimbles sized for these units; we generally recommend that our customers (even if using a thimble) construct what is basically an elongated tea bag for use with this product. This will permit retention of fine material but reduce solvent holdup during the rapid draining part of the extraction cycle.

These jumbo systems are available with extractor capacities of 500, 1500, and 5000 mL.

Specifications Small Medium Large
Item # CG-1373-01 CG-1373-02 CG-1373-03
Extractor Capacity (mL) 500 1,500 5,000
Extractor Inner Diameter (mm) 68 95 140
Extractor Top Flange Size 60 100 150
Extractor Lower Joint 45/50 55/50
Condenser Length (mm) 350 400 750
Paper Thimble Size (mm) 58 x 170 81 x 230 125 x 310
Flask Capacity (mL) 1,000 3,000 12,000

The overall assembled height of the 500 mL system is 50" (127 cm). The overall assembled height of the 1,500 mL system is 59.5" (151 cm). You will need additional clearance for a heating mantle and/or stirrer.

The 5,000 mL complete system has a shipping weight of 35 lb (16 kg) in two boxes, one 19" x 16" 13" (48 x 41 x 33 cm) for the flask and another 42" x 20" x 16" (107 x 51 x 41 cm) for the remaining components.  The overall assembled height when situated in a 12 liter mantle is approximately 87-1/2" (222 cm), the height to the top of the extractor is 51" (129.5 cm) and height to the top of the flask is ~14-3/4" (37.5 cm). The condenser is 39" (99 cm) long (36-1/4" above the joint), and has an OD of 80 mm (110 mm at the hose barbs). The tube at the top of the condenser is 30 mm OD and ~ 100 mm in height and the hose barbs are ~10 mm in diameter.  The extractor is 29-3/8" (74.6 cm) overall, 27-1/2'" of which is above the joint. The extractor body is ~150 mm in diameter, and the overall width at the sidearm is ~ 220 mm.  The flange is 140 mm h x 185 mm diameter.
