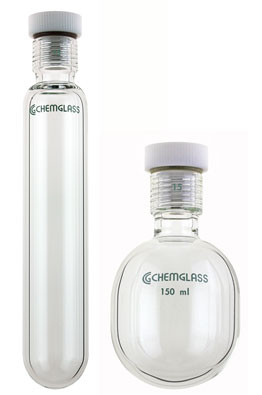

Pressure Vessel, Heavy Wall, Cylindrical or Round Bottom

Item #: CG-1880
Quantity:
$28.50

Availability: 1-3 business days

Product Description

These heavy wall vessels have an internal thread for use with a #15 or #25 mm PTFE bushing as a pressure seal. This unique design allows hand tightening and loosening for easy access into the vessel. The O-ring is positioned on the bushing above the thread for improved sealing.

These vessels are useful for pressure reactions and applications such as polymerization and analysis of halogens by thermal decomposition in the presence of lime.

**IMPORTANT NOTICE** - These pressure vessels are tested at 150 psig, which is approximately 2.5 times their recommended working pressure. Neither the manufacturer nor Safety Emporium guarantees the vessels from breaking under pressure due to the nature of the material or conditions beyond the manufacturer's control. Safety shields, personal protective equipment and other safety equipment should always be used with glass pressure reactors. The user assumes all risk and liability in using this item.

Item # Capacity (mL) Bushing # Outer Diameter (mm) Overall Length (mm)
CG-1880-01 15 15 25.4 114
CG-1880-02 35 15 25.4 190
CG-1880-03 38 15 25.4 215
CG-1880-04 48 15 38 114
CG-1880-05 100 15 38 190
CG-1880-06 120 15 38 215
CG-1880-10 75 15 52 102
CG-1880-40 75 25 52 102
CG-1880-11 150 15 63.5 117
CG-1880-41 150 25 63.5 117
CG-1880-12 350 15 82.5 142
CG-1880-42 350 25 82.5 142

The replacement PTFE bushing is item # CG-363-XX.  Replacement Viton O-rings are item #'s CG-305-210 and CG-305-220.

Other Details

Manufactured in: USA
