This vacuum trap features removable arms to permit the trap to be easily disconnected for cleaning. The arms are made to permit clamping directly to the lattice and accept 5/8" I.D. vacuum hose. The trap and arms have 35/25 spherical joints for added flexibility while providing a leak-free seal.

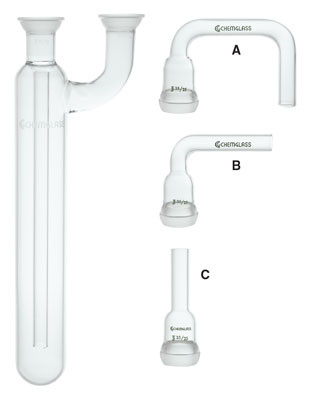

The complete package is supplied with one each of arm style A (180°), one each of arm style B (90°) and one each of arm style C (straight), and two CG-150-06 #35 stainless steel pinchclamps. The trap body is 2" (50 mm) O.D. x 360 mm long. Individual replacement arms and trap body are available separately if needed.
