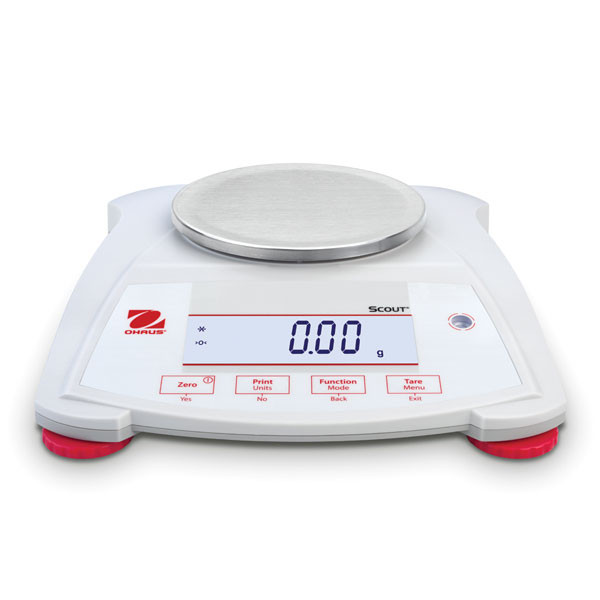

Ohaus Scout® SPX Balances w/ 120 to 8,200 g Capacities

Item #: H-SCOUT-SPX
Quantity:
$233.00

Availability: 2-3 business days

Product Description

The Ohaus Scout® SPX series of balances are ideal for laboratory & industrial applications such as general weighing, parts counting, percent weighing, checkweighing, totalization, and display hold of the first or last stable weight. The large LCD display with 0.78 in (20 mm) digits and backlight make this an ideal balance for general industrial and laboratory applications.

These rugged balances have an ABS housing and stainless steel pan. They run on the included AC power adapter or on 4 AA batteries (not included) and have a low battery indicator, auto-shutoff, auto tare, mechanical and software overload protection, and a span calibration mass (for models up to 620 g capacity). Each includes a security bracket, skid-resistant leveling feet, stability indicator, an up-front level indicator, a transportation lock to protect the load cell, and a weigh-below hook.  Their stackable design with the optional stacking and storage cover (except for the 1 mg models which have a draft shield) makes them ideal for undergraduate teaching laboratories and field use. With the optional network connection kit, you can connect these balances to peripherals for printing and data collection.

These balances display weights in Gram, Kilogram, Carat, Newton, Ounce, Troy Ounce, Pennyweight, Pound, Pound:Ounce, and Grains.

  SPX123 SPX223 SPX222 SPX422 SPX622 SPX1202
Capacity x Max Readability (g) 120 g x 0.001 g 220 g x 0.001 g 220 g x 0.01 g 420 g x 0.01 g 620 g x 0.01 g 1,200 g x 0.01 g
Capacity x Max Readability (lb) -- -- -- -- 1.36690 x 0.00005 lb 2.64555 x 0.00005 lb
Capacity x Max Readability (oz) 4.23290 oz x 0.00005 oz 7.76030 oz x 0.00005 oz 7.7600 oz x 0.0005 oz 14.8150 oz x 0.0005 oz 21.8700 oz x 0.0005 oz 42.390 oz x 0.0005 oz
Capacity x Max Readability (kg) -- -- -- -- -- 1.2 kg x 0.00001 kg
Draft Shield Yes No
Stabilization time (s) 1.5 1.5 1 1 1 1.5
Repeatability / Linearity 0.002 g / 0.003 g 0.002 g / 0.003 g 0.01 g / 0.01 g 0.01 g / 0.01 g 0.01 g / 0.02 g 0.02 g / 0.03 g
Pan Size 3.7" (93 mm) diameter 4.7" (120 mm) diameter 6.7" × 5.5" (170 mm × 140 mm)
  SPX2202 SPX421 SPX621 SPX2201 SPX6201 SPX8200
Capacity x Max Readability (g) 2,200 g x 0.01 g 420 g x 0.1 g 620 g x 0.1 g 2,200 g x 0.1 g 6,200 g x 0.1 g 8,200 g x 1 g
Capacity x Max Readability (lb) 4.85020 x 0.00005 lb -- 1.3670 lb x 0.0005 lb 4.8500 lb x 0.0005 lb 13.6685 lb x 0.0005 lb 18.080 lb x 0.005 lb
Capacity x Max Readability (oz) 77.6030 oz x 0.0005 oz 14.815 oz x 0.005 oz 21.870 oz x 0.005 oz 77.600 oz x 0.005 oz 218.700 oz x 0.005 oz 289.25 oz x 0.05 oz
Capacity x Max Readability (kg) 2.2 x 0.00001 kg -- -- 2.2 x 0.0001 kg 6.2 x 0.0001 kg 8.2 x 0.001 kg
Draft Shield No
Stabilization time (s) 1.5 1 1 1 1 1
Repeatability / Linearity 0.02 g / 0.03 g 0.1 g / 0.1 g 0.1 g / 0.1 g 0.1 g / 0.1 g 0.1 g / 0.2 g 1 g /1 g
Pan Size 6.7" x 5.5" (170 mm x 140 mm) 4.7" (120 mm) diameter 6.7" x 5.5" (170 mm x 140 mm)



Dimensions: 2.1" h x 8" w x 8.8" d (54 x 204 x 224 mm) except draft shield models which are 4.1" h x 8" w x 8.7" d (103 x 204 x 222 mm). Weight: 2.2 lb (1 kg).

Literature available: Ohaus Scout® SPX summary sheet.

Accessories: A variety of accessories and replacement parts are available. These include in-use covers (item # H-30269022), stacking and storage covers for models without draftshield (item # H-SCOUT-STCOVER), a carrying case (item # H-30269021), an anti-theft device (item # H-80850000), auxilliary display (item # H-AD7-MD), a density determination kit (item # H-30269020), an RS232 interface kit (item # H-3026898), USB host interface kit (for flash drive) (item # H-30268983), USB device interface kit (for PC) (item # H-30268984), Bluetooth interface kit (item # H-30268985) and Ethernet interface kit (item # H-30268986).

For similar models with a Touchscreen display see item # H-Scout-STX.
