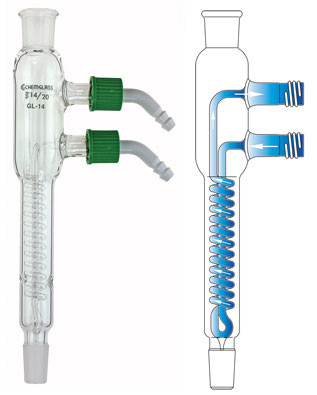

A composite image with a photograph of a 1213-HC spiral reflux condenser with removable hose connections on the left and a diagram showing the water flow through the condenser on the right.

Condensers, Spiral Reflux w/ Removable Hose Connections

Item #: CG-1213-HC

* Size:

Quantity:

$231.00

Normal Availability: 1-3 business days

Product Description

These coil style reflux condensers have a tightly wrapped coil to provide maximum cooling. It is excellent for use with high vapor pressure solvents. The condenser has a top outer standard taper joint and a lower inner drip tip joint. The detachable hose connections are made of polypropylene to provide a safe and easy way of connecting and disconnecting flexibe tubing to the condenser. The hose connections have an O.D. of 8 mm and an I.D. of 4 mm. The jacket is 100 mm long and the overall height of the condenser is 205 mm. It comes supplied complete with two GL-14 open top screw caps.

For a version with standard hose barbs instead of the removable hose connections see item # CG-1213.

For a larger diameter version with 24/40 joints see item # CG-1213-L.
