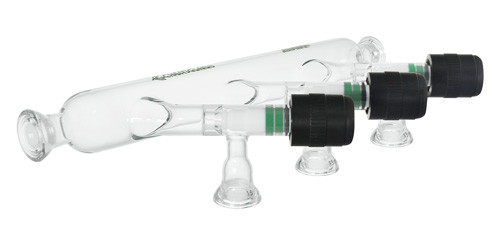

  • A photograph of a af-0061 single line vacuum manifold complete system with 3 ports.

Single Line Vacuum Manifold Complete System w/ 3, 4, or 5 ports

Item #: AF-0061
Quantity:
$755.00

Normal Availability: 1-3 business days

Product Description

This single bank manifold features CG-961-02 0-8mm Chem-Cap® valves for easy and grease-free operation. The ports are spaced 75 mm center to center with an overall width of as indicated, permitting easy operation inside a fume hood. All connection ports are 15 mm I.D. O-ring connections which can connect to standard taper components, serrated hose connections or 3/8 in Cajon™ fittings with separately available adapters.

The manifold only options include the required number of 0-8 mm valve plugs.  The complete packages described below contain everything you need except a vacuum pump, flexible tubing and a Dewar flask to get your system operational.  The pricing already reflects a 10% savings over purchasing the package items individually.

Complete Packages Include Each of The Following AF-0061-80 AF-0061-81 AF-0061-82
AF-0061-0X Manifold with PTFE plugs.  # of ports as shown: 3 4 5
AF-0200-01 vacuum trap complete with body O-ring and horseshoe clamp 1 1 1
AF-0070-03 #15 O-ring to 3/4" tubulation (for connecting to vacuum source) 1 1 1
CG-150-05 stainless steel clamps for line and trap 6 7 8
AF-0072-01 connecting inlet adapter (for inert/reaction gas supply) 1 1 1
AF-0513-20 bubbler 1 1 1
CG-4022-02 T-shaped tubing connector (For inert gas/bubbler supply line) 1 1 1
AF-0070-01 #15 O-ring to 3/8" tubulation (to adapt ports to vacuum tubing) 3 4 5
CG-305-116 12-pack of spare #116 Viton O-rings 1 1 1

Other Details

Manufactured in: USA
