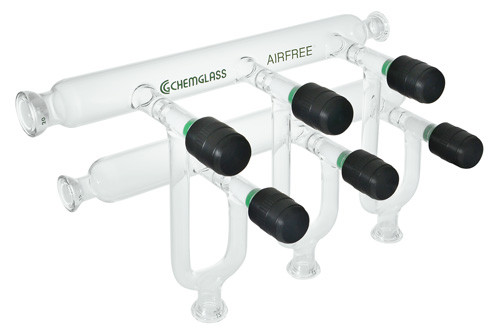

  • A photograph of a af-0300-13 double bank vacuum manifold w/ 3 ports.

Double Bank Vacuum Manifold w/ 3 ports

Item #: AF-0300-13
Quantity:
$1,750.00

Normal Availability: 1-3 business days

Product Description

This double bank 3-port manifold features forward-facing 0-8mm Chem-Cap® valves. The left side of manifold has #20 O-ring joints for connection to a AF-0300-04 trap assembly using a AF-0300-14 adapter (adapters and traps not included). The ports and the right side of the manifold feature #15 O-ring joints that can attach to standard taper joints, serrated hose connections, etc. using separately available adapters (O-rings not included). The distance between ports is 100 mm center-to-center and the overall length of the manifold is 410 mm.

We also offer the following completely configured system package, the pricing of which includes a 10% discount over purchasing the collection of items individually.  The complete system includes:

(1) AF-0300-13 3-port double manifold
(1) AF-0300-14 trap connection adapter w/ shutoff valve
(1) AF-0300-04 vacuum trap complete with horseshoe clamp
(1) AF-0300-06 vacuum shut-off adapter (attaches to trap outlet)
(2) AF-0210-01 #15 O-ring stopper
(1) AF-0210-02 #20 O-ring stopper
(5) CG-150-05 stainless steel clamps (3 for ports, 2 for manifold end)
(4) CG-150-06 stainless steel clamps (2 for manifold, 2 for trap)
(1) AF-0072-01 connecting inlet adapter (for inert/reaction gas supply)
(1) AF-0513-20 bubbler
(1) CG-4022-02 T-shaped tubing connector (For inert gas/bubbler supply line)
(3) AF-0070-01 #15 O-ring to 3/8" tubulation (to adapt ports to vacuum tubing)
(1) CG-305-116 12-pack of spare #116 Viton O-rings
(1) CG-305-214 6-pack of spare #214 Viton O-rings

This system requires a Dewar flask to cool the trap (sold separately). The 1 liter SE-1593-03 or 4.3 liter SE-1593-05 will work well depending on your bench space and specific needs. You will also need to supply a vacuum pump with appropriate tubing for connection to the manifold (items we do not currently sell, sorry).



Other Details

Manufactured in: USA
