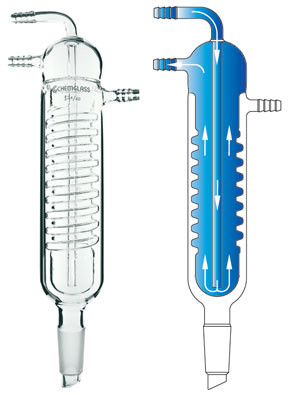

A composite image with a photograph of a CG-1211 Friedrichs condenser on the left and a diagram showing the water flow through the condenser on the right.

Condensers, Friedrichs with Upper Serrated Hose Connection

Item #: CG-1211

* Size:

Quantity:

$274.00

Normal Availability: 1-3 business days

Product Description

These condensers are similar to CG-1210 but with the upper outer joint replaced with a serrated hose connection for use with a drying tube. This style of condenser is used primarily in Soxhlet extractions or in reflux mode. The hose connections have an O.D. of 10 mm at the middle serration. The overall height of the condenser is 330 mm on the 24/40 version and 360 mm on the 45/50 version.

For a version with an upper standard taper joint rather than a hose barb see item # CG-1210.

For a version with removable hose connections see item# CG-1210-HC-01.
