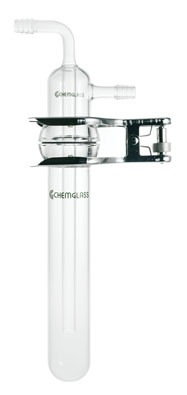

  • A photograph of a cg-4513 vacuum trap, o-ring, 90° inlet, serrated hose connections.

Vacuum Trap, O-ring, 90° inlet, Serrated Hose Connections

Item #: CG-4513

Normal Availability: 1-3 business days

Product Description

This trap is similar to the CG-4515 traps but has an O-ring joint connecting the trap body to the stopper which provides a vacuum tight, grease-free seal and permits easy disassembly and cleaning. The serrated hose connections are 13.5 mm at the smallest serration and 15.5 mm at the largest serration.

The complete trap is supplied with a stopper (the upper piece with the inlet and outlet connection), lower body (the piece that collects the solvent), a CG-305 Viton O-ring, and a CG-150 stainless steel pinch clamp. Available in three sizes as a complete set or as individual components.  For a similar trap but with O-ring joints instead of hose connections see item # AF-0200.

Item # Body OD (mm) Length (mm) Inner tube OD (mm) O-ring size Clamp size
CG-4513-10 30 225 12 #223 #50
CG-4513-11 45 250 16 #226 #65
CG-4513-12 56 275 25 #229 #75

Other Details

Manufactured in: USA
