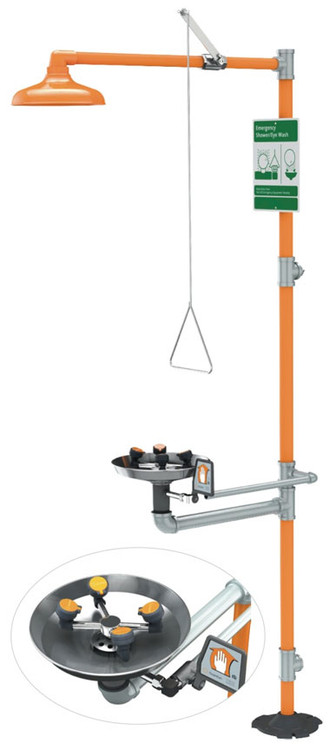

  • GBF1909 base model.
  • GBF1909PCC with polished chrome construction.
  • Image 3
  • Image 4

Guardian GBF1909 Series Barrier-Free Safety Stations with WideArea™ Eye/Face Wash, Plastic Shower Head

Item #: GBF1909
Quantity:
$780.00

Availability: 1-2 business days

Product Description

The Guardian Equipment GBF1909 series of safety stations incorporates features to improve access under the Americans With Disabilities Act (ADA).  Versus the standard G1909, the shower head and pull rod are extended for improved access and the bowl is lowered and extended to permit access by a wheelchair user.

  • GBF1909BC has an integrated stainless bowl cover
  • GBF1909HS adds a auxilliary drench hose
  • GBF1909PCC has a polished chrome construction for an attractive appearance
  • GBFVR1909SC is a vandal-resistant unit that is ideal for use in schools and other areas where equipment may be subject to abuse.

The GBF1994 has a similar style but is constructed of stainless steel for superior corrosion protection.   The GBF2100-series recessed laboratory safety stations also meet ADA requirements while providing attractive, contemporary, and space-saving designs.  See, for example, the GBF2150, GBF2162, and GBF2172. A wide variety other safety stations with ADA access, corrosion resistance, freeze/scald protection and more are also available in the Guardian line.

Features Options

Application: Barrier-free combination WideArea™ eye/face wash and shower safety station. Shower head and pull rod are extended for improved access. Bowl is lowered and extended to permit access by wheelchair user. Profile of unit is “flattened” to comply with maximum height and knee clearance requirements.

ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).

Shower Head: 10" diameter orange ABS plastic.

Spray Head Assembly: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water flow.

Eye/Face Wash Bowl: 11-1/2" stainless steel.

Eye/Face Wash Valve: 1/2" IPS chrome plated brass stay-open ball valve with flag handle.

Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.

Supply: 1-1/4" NPT female top and side inlet.

Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.

Sign: ANSI-compliant identification sign, item # 250-008G.

Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

AP275-200 Electric Light and Alarm Horn. Flashing light and alarm horn for mounting on safety station.

APBF250-015 Modesty curtain for mounting on barrier-free safety station.

BC Stainless steel bowl cover.

FC20 Regulates shower flow rate to 20 GPM.

GC Powder coated finish on galvanized pipe and fittings. Available colors include orange, yellow, red and green.

HS Auxiliary drench hose unit for rinsing eyes, face or body.

PCC Polished chrome construction for an attractive appearance.

SSH Stainless steel shower head.

Application Note

An optional G3800LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  GBF1909 specification sheet w/ measured drawings, installation, operation and maintenance guide, and written specifications (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 48" x 17" x 9" (122 x 43 x 23 cm) weighing approximately 48 pounds (21.8 kg). The freight class is 85. The GBF1909BC ships in a box approximately 17" x 48" x 10" (43 x 122 x 26 cm) weighing 56 lb (25.4 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
