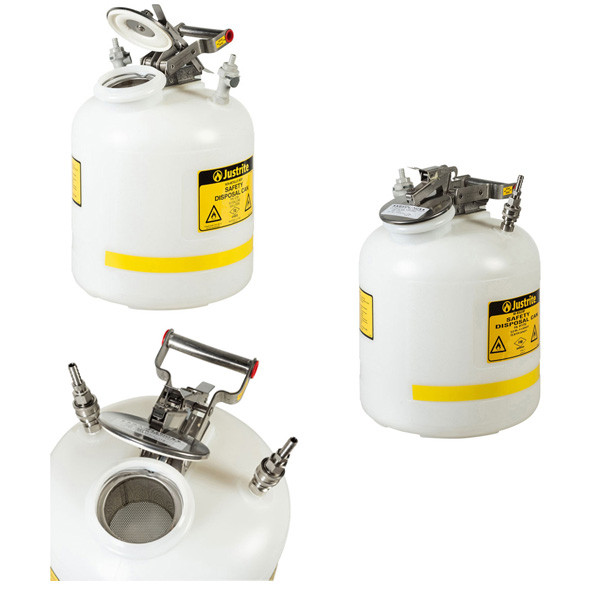

A photograph of (3) 5 Gallon HPLC Safety Disposal Cans.

Justrite HPLC Safety Disposal Cans w/ Quick-Disconnect Fittings, 5 Gallon

SKU:
02152
Normal availability:
1-2 business days
$468.25 - $881.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

These Safety Disposal Cans are equipped with quick-disconnect fittings that make them ideal for HPLC waste applications. Each can has two valved quick-disconnect fittings (one for liquid intake and one for vapor release/venting) that automatically close when decoupled. When a pump-fed or gravity-flow HPLC system is attached to the liquid intake, the solvent flows freely into the waste container. Optional manifolds enable up to six waste lines (per manifold) to be fed into a single intake fitting. An optional coalescing/carbon filter can be used on the vent fitting to control odors. This system eliminates back pressure in the liquid flow disposal line and provides controlled handling of vapor. The easy-on, easy-off quick disconnect mechanism prevents leaks, drips and vapor release.

The translucent white polyethylene color allows for a fast visual inspection of the liquid level. The 3.65" (93 mm) diameter pouring spout is equipped with a stainless steel flame arrester, which reliably dissipates heat to prevent flashback ignition and the spring-loaded, sealed lid automatically vents to guard against explosion.

These 5-gallon (19 L) round cans are 20" (508 mm) high and have a 12" (305 mm) outer diameter. They have a net weight of 8.9 lb (4.0 kg).  They come with various combinations of fittings (see table below).  Stainless-steel fittings come with PTFE O-rings while polypropylene fittings come with EPDM O-rings. The tubing for both fittings has an inner diameter of 0.375" (10 mm).

These containers comply with US OSHA 1910 and NFPA Code 30 requirements both with and without the HPLC filter. The cans themselves are FM approved but they have not been tested for FM-approval in assembly with the filter.

SE Item # JustRite Model Fitting #1, Liquid Intake Fitting #2, Vapor Release
02152-PP PP12755 Polypropylene, EPDM O-Ring Polypropylene, EPDM O-Ring
02152-BY BY12755 Stainless Steel, PTFE O-Ring Polypropylene, EPDM O-Ring
02152-TF TF12755 Stainless Steel, PTFE O-Ring Stainless Steel, PTFE O-Ring

Related Items: 1 Gallon Oval Cans (item #02150), 2 Gallon HPLC Safety Cans (item #02151), 5 Gallon HPLC Safety Cans with Faucet (item #02153)

Accessories: Coalescing Carbon Filters (item #02155), HPLC PTFE Mainfold (item #02156), HPLC Stainless Steel Mainfold (item #02158), Spill Basin (item #02159)

Literature Available:


WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Additional Information
Manufactured in:
USA
