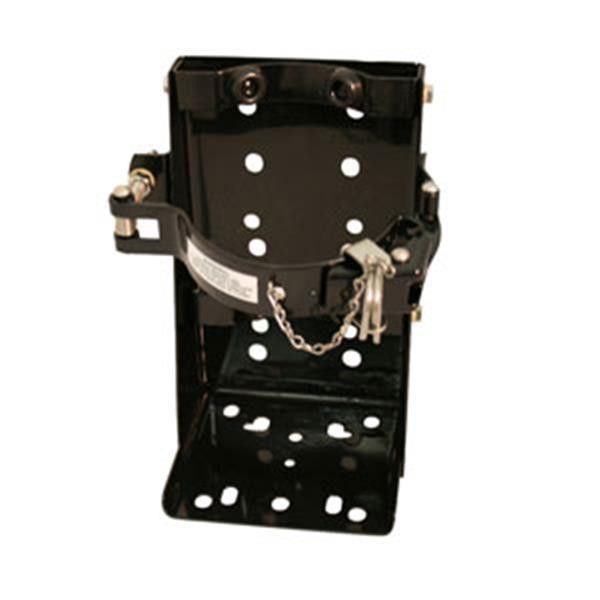

These heavy-duty box type brackets are made from steel and are finished with a corrosion-resistant black polyester epoxy paint. They feature adjustable retention arms and locking stainless steel ring pins with retention chains. Each bracket is permanently marked with the applicable part number and designation for addressing USCG compliance requirements.

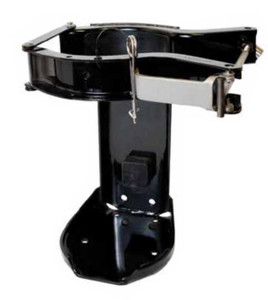

The UB-5, UB-10, and UB-20 fit Badger's 5, 10, and 20 lb extinguishers, respectively, with the exception of CO2 models. The UB-20 is also used with Badger's 2.5 gallon water (item # 09624), F-250 Universal Ultra AR-AFFF Foam (item # 09500), and wet chemical units.
The VB-1 bracket fits Badger 5 lb CO2 units. The VB2 fits Badger 10 and 15 lb CO2 units. The RB-4 fits Badger CO2 models. Badger CO2 models are listed under item # 09648.
The HB-11 bracket fits Badger 11 and 15.5 Halotron units (item # 09634).
Complete measured diagrams for these brackets are found on the downloadable UB Vehicle Bracket specification sheet.
