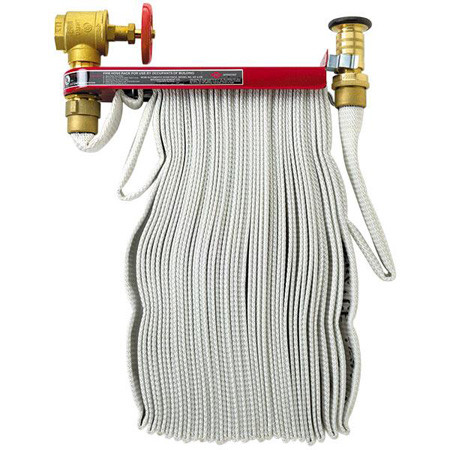

A photograph of a 09905 fire hose pin rack with fire hose installed.

Fire Hose Pin Racks

SKU:
09905
Availability:
2-3 business days
$170.00 - $298.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

These semi-automatic Brooks fire hose pin racks are made of red enameled steel, have movable pins, and feature a clamping mechanism that keeps water out of the hose until the last fold of the hose has been removed from the rack. FIRE HOSE NOT INCLUDED.  To install, simply attach the female hose coupling to the male nipple and tighten the connection, make a small loop and clamp the hose in the clamping channel, and then hang the folded hose from the rack pins. The outlet nozzle fits in the included nozzle clip on the front of the rack.  To use, turn on the water and pull the hose by the nozzle; water will be released after the last loop of hose is pulled from the rack.

These racks are available in four configurations, each of which includes removable pins. The 21-pin racks are available for standard 1.5" rack and reel hose or standard single jacket 1.5" hose. The 25-pin racks are for 1.5" rack/reel hose and are available for 1-1/2" and 2-1/2" nipple openings.

Item # # of Pins Hose Type Length Width
09905-21-RR 21 Rack and reel 18" (45.7 cm) 4" (10.2 cm)
09905-21-SJ 21 Single jacket 22" (55.9 cm) 4" (10.2 cm)
09905-25-15 25 Rack and reel 22" (55.9 cm) 4.25" (10.82 cm)
09905-25-25 25 Rack and reel 19" (48.3 cm) 4.25" (10.8 cm)



If you don't wish to mount the rack on a standpipe connection as shown here, a wall mounting rack is available as item # 09904.
