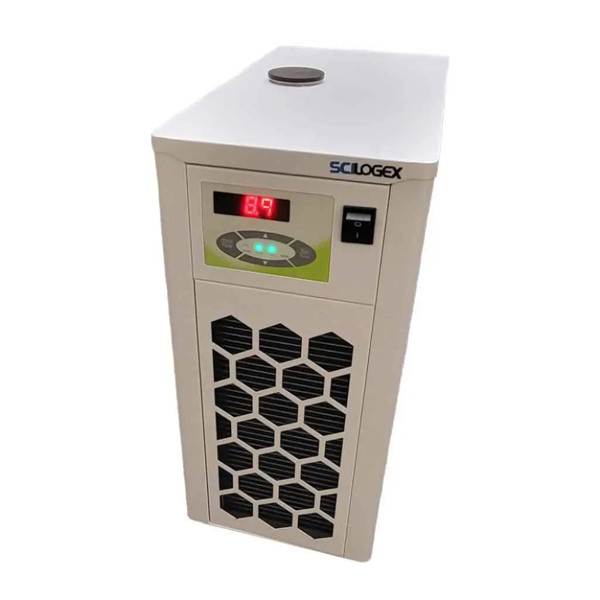

Scilogex SCIP5-Mini Recirculating Chiller

This mini recirculating chiller is ideal for cooling water from ambient to -20°C. It's small size allows for installation directly on a desktop, under a lab bench, or in a fume hood. The integrated design of the drain and water outlets allows for easy drainage while an intuitive liquid level window makes it easy to monitor the water level in the large volume (4.5 L) reservoir. The liquid pathway is made of stainless steel or high quality corrosion-resistant material. The compressor uses a state-of-the-art R290 environmental friendly refrigerant. A user-friendly operating panel and crystal-clear LED display make for easy operation. These units employ PID temperature control with a built-in PT1000 temperature sensor providing highly accurate temperature control. The pressure and flow of the maintenance-free pump can be automatically adjusted according to load change. The entire unit is capable of protection against short circuit, overload and delayed start.

Applications:

• Ideal for cooling rotary evaporators of 3 L capacity. See SCIP5-Mini Rotary Evaporator System Set-Ups.
• Compatible with distillation systems, concentrators, extractors, condensing reflux devices.
• Useful for analytical devices such as ultrasonic disrupting instruments and continuous flow analyzers.

Dimensions: 220 x 420 x 495 mm (8.7 x 16.5 x 19.5 in) Weight:30 kg (66.1 lb)

Literature: See SCIP5-Mini Data Sheet for complete specifications.
