Pedestrian Symbol Warehouse Floor and Wall LED Safety Sign Projector

This LED Gobo (goes before optics) safety projector for industrial and warehouse applications is perfect for projecting clear square and rectangular safety signs and symbols directly onto floors or walls. Projected images are immune to being scraped, torn, or otherwise damaged by traffic, cleaning, and normal facility operations. As such, it provides a durable alternative to traditional floor markings in warehouses, production areas, and other industrial environments.

It features a bold yellow background with a black pedestrian symbol on it.

This high-power 500 Watt model is designed for very large industrial spaces, high mounting locations, and long-distance projection, where maximum brightness and large projected coverage are needed. It is the best model choice for demanding long-distance applications in expansive warehouses, manufacturing facilities, loading areas, storage zones, and large operational spaces. It is available with a standard 0.25 lens that produces smaller, more concentrated projected images, and a wide 0.45 lens that produces a larger projected image from the same mounting height.

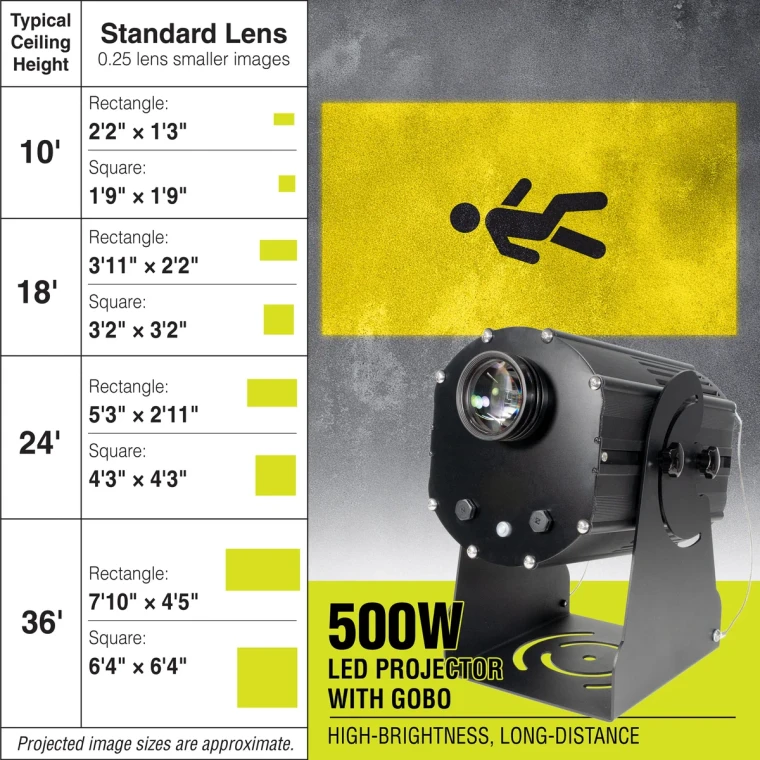

Standard Lens (0.25):

• 10 ft Mounting Height:
• Rectangle: ~ 2 ft 2 inch x 1 ft 3 inch
• Square: ~ 1 ft 9 inch x 1 ft 9 inch
• 18 ft Mounting Height:
• Rectangle: ~ 3 ft 11 inch x 2 ft 2 inch
• Square: ~ 3 ft 2 inch x 3 ft 2 inch
• 24 ft Mounting Height:
• Rectangle: ~ 5 ft 3 inch x 2 ft 11 inch
• Square: ~ 4 ft 3 inch x 4 ft 3 inch
• 36 ft Mounting Height:
• Rectangle: ~ 7 ft 10 inch x 4 ft 5 inch
• Square: ~ 6 ft 4 inch x 6 ft 4 inch

Wide Lens (0.45):

• 10 ft Mounting Height:
• Rectangle: ~ 3 ft 11 inch x 2 ft 2 inch
• Square: ~ 3 ft 2 inch x 3 ft 2 inch
• 18 ft Mounting Height:
• Rectangle: ~7 ft 1 inch x 4 ft
• Square: ~ 5 ft 9 inch x 5 ft 9 inch
• 24 ft Mounting Height:
• Rectangle: ~ 9 ft 5 inch x 5 ft 4 inch
• Square: ~ 7 ft 8 inch x 7 ft 8 inch
• 36 ft Mounting Height:
• Rectangle: 14 ft 1 inch x 7 ft 11 inch
• Square: ~ 11 ft 5 inch x 11 ft 5 inch

Projected image sizes are approximate, and may vary depending on installation conditions.

With these projectors, safety signs and symbols can be directly projected on floors or walls, without risking damage to the projected markings by traffic. They are perfect for large warehouses and distribution centers, manufacturing and production facilities, loading docks and major material handling areas, large restricted or controlled-access zones, vehicle routes and traffic areas, storage and staging areas, high mounting applications requiring strong image brightness, and areas where large square or rectangular projected markings are required.

We have a wide selection of projector signs and symbols available.

Custom projector images are available, please contact us!
