Ohaus Explorer™ Precision Balances

Product Description

These Ohaus Explorer™ NTEP Balances meet or exceed the Class I or II accuracy requirements in accordance with NIST Handbook 44 and Canada’s Weights and Measures Regulations. Certificate of Conformance Number 12-012 was issued under the National Type Evaluation Program (NTEP) of the National Conference on Weights and Measures. Notice of Approval AM-5847 was issued by Measurement Canada, an Agency of Industry Canada.

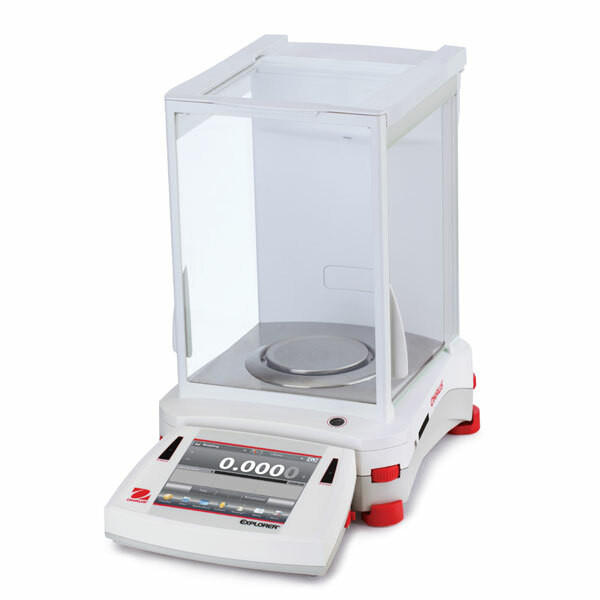

These balances are extremely accurate and durable, and are ideal for laboratory and industrial environments. The Analytical models have capacities of 220 g or 320 g with a readability of 0.1 mg and have optional automatic doors (EX.../AD models) The Precision models have capacities that range from 220 g to 10,200 g with readability from 0.001 g to 0.1 g. The precision-machined, solid metal weighing cells ensure accurate, reproducible measurements. Each unit features a detachable terminal with a large (5.7" diagonal), full-color VGA graphic display and icon-driven application software that features 14 unique application modes. Models are available with Ohaus' signature AutoCal™ internal calibration system or with external calibration (model numbers EX../E). Draft Shields are supplied standard for models with 1 mg (0.001 g) readability and are available as an optional accessory for other models.

Typical application modes include weighing, parts counting, percent weighing, checkweighing, dynamic/animal weighing, filling, totalization/statistics, formulation, density determination, pipette adjustment and ingredient costing. Weigh displays include milligrams, grams, ounces, pounds, troy ounce, grain and dwt.

These balances have a metal base, ABS top housing, a stainless steel pan, a replaceable in-use cover and are powered with an AC adaptor (included). Communication via RS232, USB Host, USB Device, optional Ethernet (accessory sold separately), GLP/GMP data output with real-time clock.

For non-certified models see H-EXPLORER-AN and H-EXPLORER-PR.

Specifications	EX224N	EX224N/AD	EX324N	EX324N/AD	EX223N	EX223N/E	EX423N	EX423N/E	EX1103N
Capacity x Readability(g)	220 g x 0.0001 g (0.1 mg)	220 g x 0.0001 g (0.1 mg)	320 g x 0.0001 g (0.1 mg)	320 g x 0.0001 g (0.1 mg)	220 g x 0.001 g (1 mg)	220 g x 0.001 g (1 mg)	420 g x 0.001 g (1 mg)	420 g x 0.001 g (1 mg)	1,100 g x 0.001 g (1 mg)
Calibration	AutoCal™	AutoCal™	AutoCal™	AutoCal™	AutoCal™	External	AutoCal™	External	AutoCal™
Certification Class	I	I	I	I	II	II	II	II	I
Draft Shield	Yes
Pan Size	3.54” (90 mm) diameter				5.12” (130 mm) diameter

Specifications	EX2202N/E	EX4202N	EX4202N/E	EX6202N	EX6202N/E	EX10202N	EX6201N	EX6201N/E	EX10201N
Capacity x Max Readability (g)	2,200 g x 0.01 g (10 mg)	4,200 g x 0.01 g (10 mg)	4,200 g x 0.01 g (10 mg)	6,200 g x 0.01 g (10 mg)	6,200 g x 0.01 g (10 mg)	10,200 g x 0.01 g (10 mg)	6,200 g x 0.1 g (100 mg)	6,200 g x 0.1 g (100 mg)	10,200 g x 0.1 g (100 mg)
Calibration	External	AutoCal™	External	AutoCal™	External	AutoCal™	AutoCal™	External	AutoCal™
Certification	II	II	II	II	II	I	II	II	I
Draft Shield	Optional
Pan Size	7.48” × 7.87” (190 mm × 200 mm)

Literature available:

Accessories: A variety of accessories and replacement parts are available. These include a draft shield kit (item # H-83021084), column kit (item # H-83021102), an anti-theft device (item # H-80850043), portable dot-matrix printer (item # H-30064203), 9 m RS422 cable (item # H-30078078), dust cover (item # H-30093334), STP-103 Thermal Printer (item # H-80251992), RS232 to CBM910 cable (item # H-80252571), ST103 Cable (item # H-80252581), AD7-RS Auxiliary Display (item # H-AD7-RS), density kit (item # H-80253384), Ethernet interface kit (item # H-83021082), RS422 Cable Extension (item # H-83021083), 25Pin-9 Pin, PC-TxxP Cable (item # H-80500524), RS232 IBM 9P Cable (item # H-80500525), A to B USB cable (item # H-83021085), Winwedge Software (item # H-80850080), Foot Switch Kit (item # H-83021086) and In-Use Terminal Cover (item # H-83033633).
