L3100 series Laboratory Water Valves, Angle Pattern

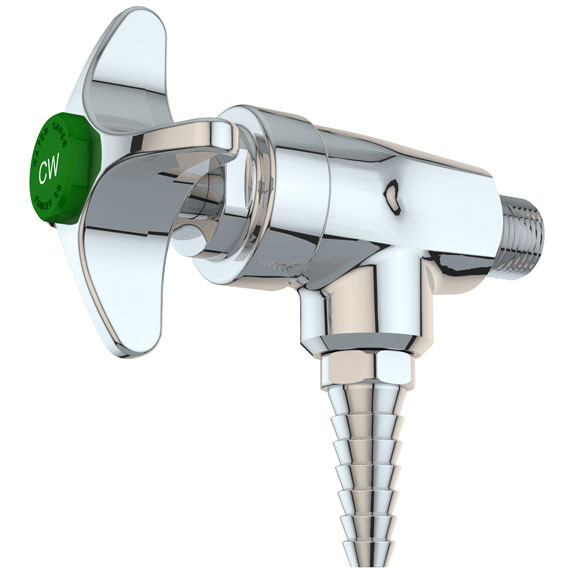

The WaterSaver Faucet Co.'s L3100 laboratory water valves have the inlet and outlet 90 degrees apart. The body and handle are made of forged brass with a polished chrome-plated finish. The valve unit is a self-contained renewable unit with a replaceable stainless steel seat. The four-arm handle features a color-coded index disc for cold water.

The inlet is 3/8" NPT male and the outlet is 3/8" IPS female with a removable seven-serration hose end. An optional BO127 vacuum aspirator is available in place of the hose end if you prefer. The L3100-110 model includes an in-line vacuum breaker which is be required under some plumbing codes. Each unit is fully assembled and factory tested prior to shipment.

Installation guidelines are available on-line and a specification sheet is available as a PDF file.

Additional configurations are the L3100-131 series which are for mounting beneath reagent shelves and the L3100-141 series of double water valves.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
