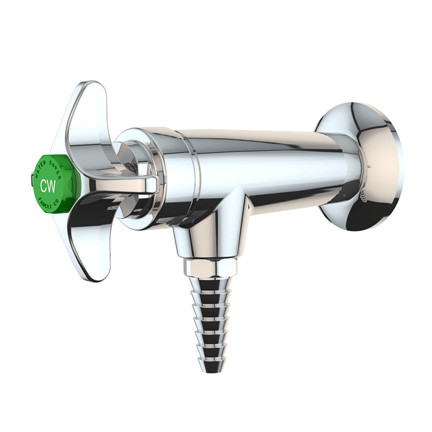

L5100FT-325 Wall-Mounted Laboratory Water Valve, 90° Angle, Chrome Finish

The WaterSaver Faucet Co.'s L5100FT-325 water valve is designed for installation on vertical surfaces (such as drywall) where there is no access behind the wall during installation. The valve is threaded onto a user-supplied nipple stubbed out of wall. The threaded escutcheon is then backed up to wall to secure the valve and conceal the piping. For installations where you have access behind the wall, such as panel mounting in laboratories, consider the L5100F-225WSA instead..

This valve has a 90° angle pattern and a removable anti-splash serrated hose end. The body and four-arm handle are made of polished chrome-plated brass. The inlet and removable outlet are 3/8" female NPT. The self-contained compression valve unit has a replaceable stainless steel seat. Each unit is fully assembled and factory tested prior to shipment.

This item is also available in a tin-lined version for pure water use by special order.

A specification drawing is available for download and installation guidelines are available on-line.

Small orders for this valve ship from New Jersey. Larger orders ship from the factory in Chicago, IL.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
