Fritted Gas Washing Bottles, Large Capacity

Gas washing bottles are generally used to saturate or dry gas streams. For example, the bottle could be filled with water and carbon dioxide gas could be bubbled through the inlet tube, saturating the gas stream with water vapor as it exits to the right as shown.

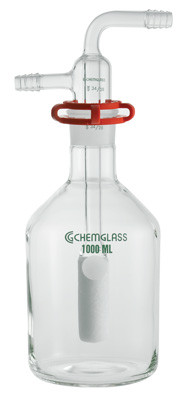

This large capacity (1 liter), low form gas washing bottle has a 34/28 standard taper top outer joint. The filter candle is 25cmm O.D. x 70mm long allowing a large gas flow to be dispersed throughout the absorbing material. Available with your choice of coarse or extra-coarse porosity. A Keck clip is also included to secure the stopper to the bottle.

The overall height of this item is approximately 295 mm (11.6 inches) and the diameter of the hose connection is 15.5 mm at the largest serration and 13.5 mm at the smallest.  The replacement part listed as "stopper" is the top section with the hose connections and dip tube while the "bottle" is the bottom portion with the base that holds the washing liquid.
