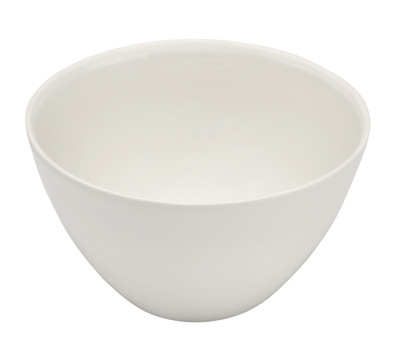

  • A photograph of a CG-1883 low form porcelain crucible.

Low Form Porcelain Crucibles

Item #: CG-1883

Normal Availability: 1-2 business days

Product Description

These low form porcelain crucibles come complete with a lid. They are glazed inside and out with the exception of the outside lower bottom and rim. Available in sizes from 5 to 500 mL. For high-form crucibles see item # CG-1882.

Item # Capacity (mL) Height (mm) Top Outside Diameter (mm)
CG-1883-01 5 20 24
CG-1883-02 10 26 41
CG-1883-03 30 31 50
CG-1883-04 50 37 61
CG-1883-05 100 46 76
CG-1883-06 250 60 102
CG-1883-07 500 87 120

Porcelain has excellent resistance to all reagents except hydrofluoric acid and is highly resistant to thermal shock while having a very low coefficient of expansion.

The average coefficient of expansion from 20 to 200 °C is 3.56 x 10-5 gradually increasing to 4.69 x 10-5 at 1000 °C. To prevent thermal stress cracks on porcelainware do not exceed a heating/cooling rate of 200 °C per hour.

To prolong the life of porcelain products:

  • Follow gradual heating/cooling rates
  • Use an oven or hot plate and an intermediate step when quicker heating/cooling rates are required
  • Avoid contact of heated ware with a cold surface
  • Carefully inspect labware prior to each use and do not use any product that appears defective.

Other Details

Manufactured in: USA
