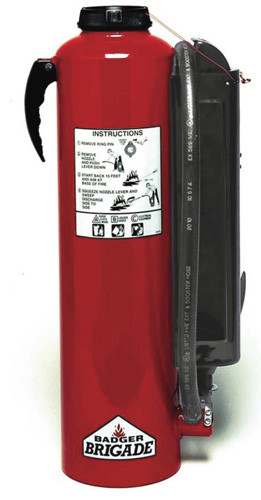

  • A photograph of a 20 pound, hi-flow, Badger Brigade B-20-A-HF cartridge operated fire extinguisher.

Badger Brigade B-20-A-HF Cartridge Operated Fire Extinguisher, 20 Pound, Hi-Flow

Item #: 09703
Quantity:
$628.00

Normal Availability: 1-2 business days

Product Description

Badger Brigade dry chemical extinguishers utilize a carbon dioxide (CO2) gas cartridge system so they are field-refillable (with proper training) and inspections can be made on every moving part. This extinguisher is used in industries where the occurrence or possibility of fire is high. These units are ideal for remote locations where smaller fires occur and on-the-spot-recharging is necessary. Typical applications include trucks, production line machinery, paint lockers and mining equipment.

Each Brigade model is fitted with a low maintenance swivel discharge nozzle to accommodate both right and left-handed operators. Each features a stainless steel cartridge guard and ring pin for extended life.  360° attachment welds on the steel cylinder ensure added strength and better corrosion resistance.  These units are UL Listed and USCG Approved (when equipped with the optional bracket) and come with a 12 year manufacturer warranty.

The ABC dry chemical agent in this extinguisher is used to combat fires involving ordinary combustible materials such as wood, cloth, paper, rubber and many plastics (Class A) as well as fires involving flammable liquids, gases, and greases (Class B) and fires involving energized electrical equipment (Class C). ABC agents are a great choice for combination fires (Class A and B together) as well as Class A fires at temperatures that would freeze water.

Replacement gas cartridges (item # 09726) and dry chemical refill agents are also available. The Safety Data Sheet (SDS) for the ABC dry chemical agent is available for download.

For a standard flow version(1.03 lb/s (.47 kg/s)) see Badger Brigade B-20-A, item # 09702.

The recommended bracket for this unit is Badger Model B20 (item # 09721).  Badger's specification sheet for 10, 20, and 30 lb Brigade models is available for download.

Specifications:

Badger Model # B-20-A-HF
Badger Part # 466564
Agent 21 lb (9.53 kg) ABC powder
UL Rating 2-A:40-B:C
Operating Temperature -40 to 120 °F (-40 to 48.9 °C)
Agent Flow Rate 1.61 lb/s (0.73 kg/s)
Discharge Time 15 seconds
Maximum Effective Range 15 to 30 ft (4.57 to 9.14 m)
Height 23.6" (59.94 cm)
Width 11.25" (28.58 cm)
Depth 6.25" (15.88 cm)
Shipping Weight 45.5 lb (20.64 kg)
US Coast Guard Classification Type A, Size II
Type B:C, Size III
Vehicle Brackets B-20 (see item # 09721)

Other Details

Manufactured in: Mexico
