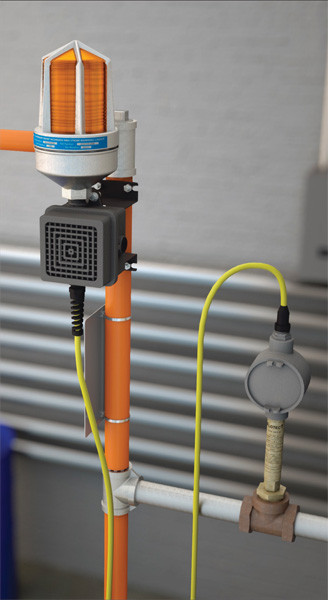

  • A photograph of an AP275-700N4 Series Electric Alarm Unit w/ Strobe Light and Horn for NEMA 4 Environments installed on a safety shower.

Guardian AP275-700N4 Series Electric Alarm Units w/ Strobe Light and Horn for NEMA 4 Environments

Item #: AP275-700N4

Normal Availability: 1-2 business days

Product Description

The Guardian Equipment AP275-700N4 series electric alarm units with strobe light, alarm horn, and weatherproof switch assembly are designed for combination safety stations and are for use in NEMA Type 4 (indoor or outdoor watertight) applications. These units ensure that others are alerted when the safety shower or eye/face wash is activated without creating an ignition source. The audio and visual signals ensure immediate coworker response as well as deter malicious activation. With the AP275-705N4 version, the activation signal can also be sent to a remote monitoring location, making this unit ideal for low-traffic or long travel distance locations as well as laboratories where someone might be working late or alone.

Units for Class 1 Division 2 environments (where flammabe vapors may exist) are also available; see item # AP275-700C1D2

Features and Options

Application: Alarm units serve two important functions when installed in conjunction with emergency eyewash and shower equipment. First, alarms serve to alert facility personnel that an accident has occurred and that assistance to the user may be required. Second, alarms deter unintended or malicious operation of the emergency equipment. For this reason, they are advisable in schools and other areas where the possibility of vandalism is present. Alarms are activated by a flow switch that senses the movement of water in the supply line when the safety unit is activated. Once activated, the bright strobe light flashes and the horn sounds loudly. The strobe light is ideal for areas with high noise levels or where there is high ambient light.

Installation: These units are designed for use with combination safety stations, and can be mounted on either the vertical pipe of the station or on a wall adjacent to the unit. 120 volt, 0.30 amp electrical supply is required.

Visual Signal: Weatherproof amber strobe light with shatter-resistant lens. Peak candle power of 2,000,000 and flash rate of 60 FPM.

Audible Signal: The weatherproof horn delivers a distinctive, urgent signal. The volume is preset at 100 db at 10 feet. An adjustment screw on the front of the horn allows adjustment of output sound level.

Flow Switch: The AP275-700N4 features a 1-1/4" IPS single pole, double throw waterproof flow switch for installation in water supply line to emergency unit. The switch senses the flow of water when either the eyewash or shower is activated. The flow switch must be installed with the tee fitting in the horizontal position, flow switch body in the vertical position, and at least 6" from the closest fitting. The direction of flow is marked on the switch body.

AP275-705N4 Option: This is the same as AP275-700N4 but includes a double pole, double throw flow switch for connection to a monitoring system. When the emergency unit is actuated, the strobe light and alarm horn activate and an electrical signal is sent to a remote monitoring location.

Mounting: Furnished complete with bracket for mounting on vertical pipe or wall, junction box and 5 foot flexible cord and receptacle. Electrical connection by others.

Quality Assurance: Each unit is fully assembled, wired and factory tested prior to shipment.

Available Option: An SW silencing switch for the alarm horn. This is convenient when the accident victim has to shower for prolonged periods. The switch is NEMA 4X rated and designed for hazardous areas.


Documentation available: Specification sheet for the AP275-700N4 and AP275-705N4

Common replacement parts: None are required under normal conditions of use.

Tech note: The Guardian AP285 series alarms and switches are identical in price and function to their AP275 counterparts but are for 1/2" supply piping found on eye/face wash-only units. Simply contact us to order.

All Guardian items are manufactured in the USA. The shipping weight of this item is approximately 13 pounds (5.9 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
