Replacement Guardian Shower Valves and Actuators

These replacement shower valves with actuating arms are for vertical and horizontal-mounted Guardian safety shower units. They are available in chrome-plated brass and stainless steel. Available options are:

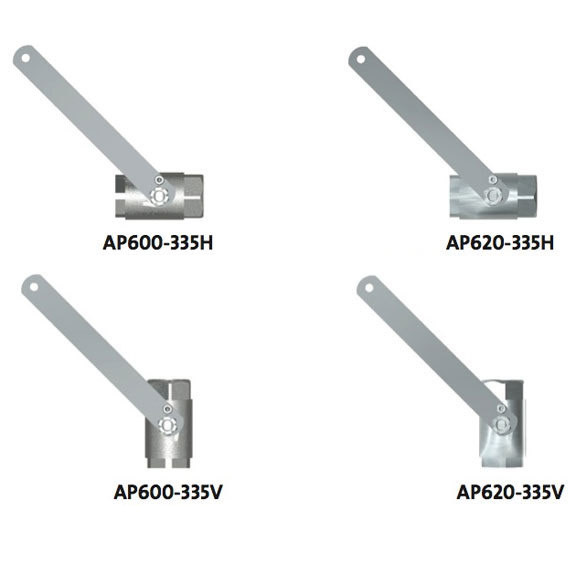

• AP600-335H - 1" IPS Chrome Plated Brass Stay-Open Ball Valve with Actuating Arm (Horizontal Installation).
• AP620-335H - 1" IPS Stainless Steel Stay-Open Ball Valve with Actuating Arm (Horizontal Installation).
• AP600-335V - 1" IPS Chrome Plated Brass Stay-Open Ball Valve with Actuating Arm (Vertical Installation).
• AP620-335V - 1" IPS Stainless Steel Stay-Open Ball Valve with Actuating Arm (Vertical Installation).

Technical Note: Guardian used to offer AP600-345H and AP600-345V self-closing valves. Self-closing valves are counter to ANSI requirements that safety shower valves remain open until manually closed and have been discontinued. If you need to replace one of these valves select the corresponding AP600-335 model.

For pull rods that attach to the actuating arm see item # AP050-079.

A parts diagram for Guardian showers is also available.
