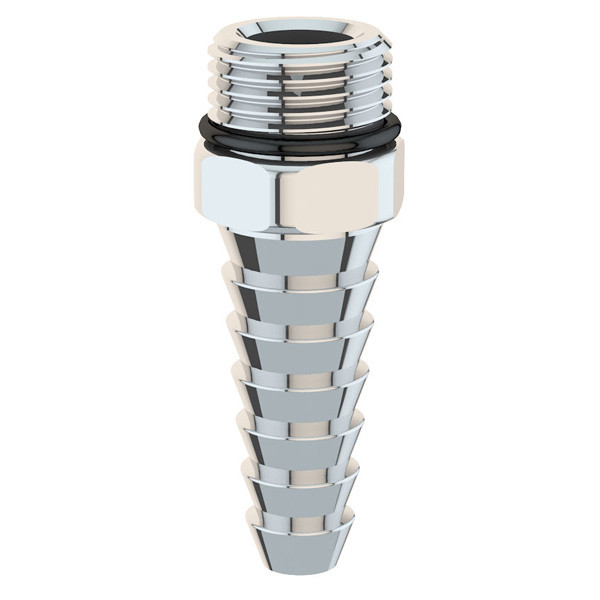

  • A photograph of a BO140S-W Straight Anti-Splash Seven Serration Hose End for WaterSaver Laboratory Water Faucets.
  • A photograph of a BO140S-W installed on a faucet outlet.  Faucet not included.

BO140S-W Straight Anti-Splash Seven Serration Hose End for WaterSaver Laboratory Water Faucets

Item #: BO140S-W

Normal Availability: 1-2 business days

Product Description

The WaterSaver Faucet Company's BO140S-W straight anti-splash seven serration hose end for laboratory water faucets has a 3/8" NPS male inlet and is constructed of chrome-plated brass. It is compatible with most WaterSaver faucets such as the  L411-L414,  L611-L613L22xx series, L2800 series and more.

The overall length is 49 mm and installed length is approximately 39 mm. The outlet tip diameter is ~7.5 mm, the diameter of the middle barb is ~12.8 mm (1/2"), and the largest barb is ~15 mm. This item installs with an 11/16" wrench or crescent wrench. An O-ring is included to ensure a water-tight seal.

This item is available with a 0.5, 1.0, 1.5, 2.0, 2.5 or 3.0 gallon per minute (GPM) internal flow control by special order for those who would like to control splashing or reduce the chance of hoses popping under higher flow rates. The part number for the outlet with a 1.0 gallon flow control is BO140S-W-FC1.0; simply insert the correct flow rate in place of 1.0 for other versions.

The flow control component is inserted at the factory using a machine so there is no way to retrofit an existing BO140S-W with a flow control or to change from one rate to another without replacing the entire hose outlet. The cost for the flow control version is generally about double compared to the stock BO140S-W. For pricing and availability please contact us by email.

For gas applications, the BO140S-G ten-serration outlet is recommended.

FOR LABORATORY USE ONLY. These components are not suitable for potable drinking water as they are made of brass which may have traces of lead.




Other Details

Manufactured in: USA
