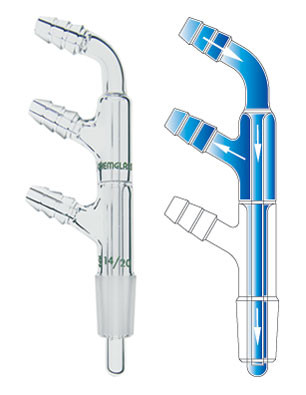

A composite image with a photograph of a CG-1222-A microscale cold finger condenser on the left and a diagram showing the water flow through the condenser on the right.

Condensers, Micro Cold Finger, 5 mm length, 14/20 joints

Item #: CG-1222-A

* Size:

Quantity:

$190.00

Normal Availability: 1-3 business days

Product Description

These condenser cold fingers are for use in refluxing up to 20 mL of solvent in flasks having a capacity of 5 to 50 mL. The top hose connection is the cooling inlet and the middle hose connection is the cooling outlet. A third, lower, hose connection is to allow for the introduction of an inert gas. The hose connections are 10 mm at the largest serration. The cold finger extends either 5 or 13 mm below the 14/20 joint.

We also offer a complete line of microcale apparatus.
