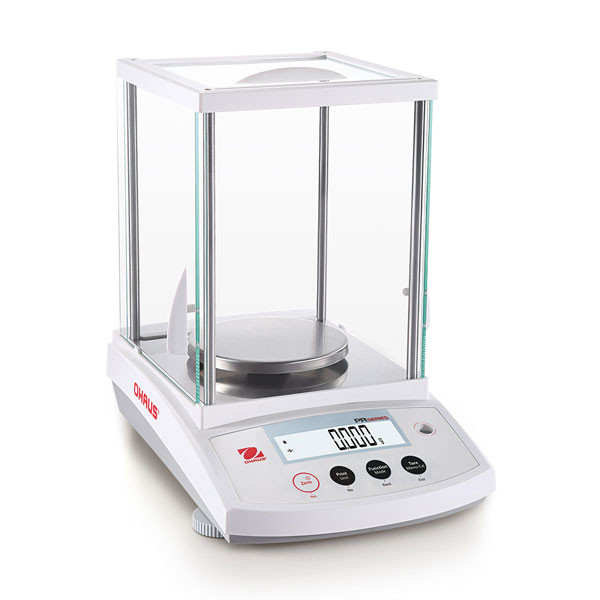

  • Photograph of Ohaus PR Series Precision Balance with Draft Shield, right facing. (models PR223/E and PR523/E)
  • Photograph of Ohaus PR Series Precision Balance, right facing. (Models 1602/E, 2202/E, 4202/E, 2201/E and 4201/E)
  • Photograph of Ohaus PR Series Precision Balance, front facing. (Models 1602/E, 2202/E, 4202/E, 2201/E and 4201/E)
  • Photograph of the bottom of Ohaus PR Series Precision Balance.
  • Photograph of the back of Ohaus PR Series Precision Balance.

Ohaus PR Series Precision Balances

Item #: H-PR-PR

Normal Availability: 2-3 business days

Product Description

Ohaus PR Series balances deliver competitive performance at an economical price. These balances are equipped with three essential weighing modes, RS-232 connectivity for data transfer and storage,  an easy-to-read, bright backlit display and a simple user interface.  The small footprint saves desktop space while providing a large weighing surface.

These Precision models are available with capacities ranging between 220 g and 4200 g with a readability of 1 mg (0.001 g) to 0.1 g. All models require external calibration.  Draft Shields are supplied standard with the higher sensitivity PR223/E and PR523/E models.

Standard features and equipment include ABS top housing, removable stainless steel pan, integrated weigh-below-hook, security bracket, calibration lock, user-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

  PR223/E PR523/E PR1602/E PR2202/E PR4202/E PR2201/E PR4201/E
Capacity x Readability(g) 220 g x 0.001 g 520 g x 0.001 g 1,600g x 0.01 g 2,200 g x 0.01 g 4,200 g x 0.01 g 2,200 g x 0.1 g 4,200 g x 0.1 g
Units g, mg, ct, dwt, grain, oz, ozt g, kg, ct, dwt, grain, oz, ozt, lb
Draft Shield 8.1 x 6.8 x 5.1" (205 x 172 x131 mm) No
Pan Size 4.72” (120 mm) diameter 7.09” (180 mm) diameter


Literature available:

Accessories: A variety of accessories and replacement parts are available. These include an anti-theft device (item # H-80850043), portable dot-matrix printer (item # H-30064203),  STP-103 Thermal Printer (item # H-80251992), density kit (item # H-80253384), glass sinker for liquid density (item # H-83034024), dust cover (item # H-30093334), RS232 to CBM910 cable (item # H-80252571), ST103 Cable (item # H-80252581), AD7-RS Auxiliary Display (item # H-AD7-RS),  25Pin-9 Pin, PC-TxxP Cable (item # H-80500524), RS232 IBM 9P Cable (item # H-80500525), ION-100A Static Ionizer (item # H-30130302) and  Winwedge Software (item # H-80850080).
