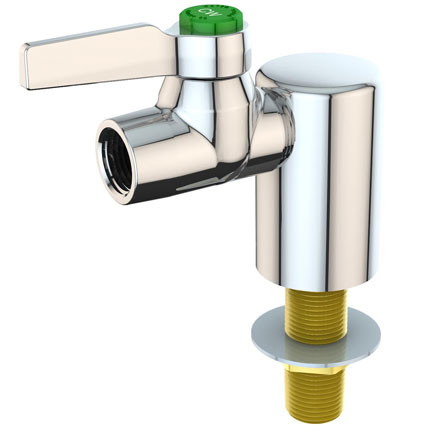

  • A photograph of the L4301-121-WSA High Flow Laboratory Water Valve including the mounting shank.

L4301-12X Series High Flow Laboratory Water Valves, Deck Mounted, Chrome Finish

Item #: L4301-121

Normal Availability: 5-6 business days

Product Description

The WaterSaver Faucet Co.'s L4301-12X series deck-mounted high flow water valves are for use on process and chilled water systems and are used for supply and return connections. The chrome-plated brass ball with molded PFTE seals design provides high flow capacity and minimizes pressure drop compared to traditional stem/seat valves like the L2800. The body, handle, and flange are made of forged brass with a polished chrome-plated finish. The 90° on/off handle features a color-coded index disc and the brass shank assembly accommodates wall thicknesses up to 1-3/4".

This unit comes in two versions. The L4301-121WSA shown here has one L4301 valve and the L4301-122SWSA has two L4301 valves oriented 180° apart. On each, the inlet is 1/2" NPT male and the outlet is 1/2" IPS female compared to the L4200-131  series valves which are 3/8". Each unit is fully assembled and factory tested prior to shipment.

This item is designed for deck-mounting. For a panel-mount version see item L4301-159WSA. For an unmounted version see item L4301 (also available with a quick-connect outlet as item L4303).

A specification drawing is available for download and installation guidelines are available on-line.

This item normally ships from the factory in Chicago, IL.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.

Other Details

Manufactured in: USA
