Guardian G1950 Series Safety Stations w/ with Eye/Face Wash, Stainless Steel Bowl

Item #: G1950
Quantity:
$765.00

Availability: 1-2 business days

Product Description

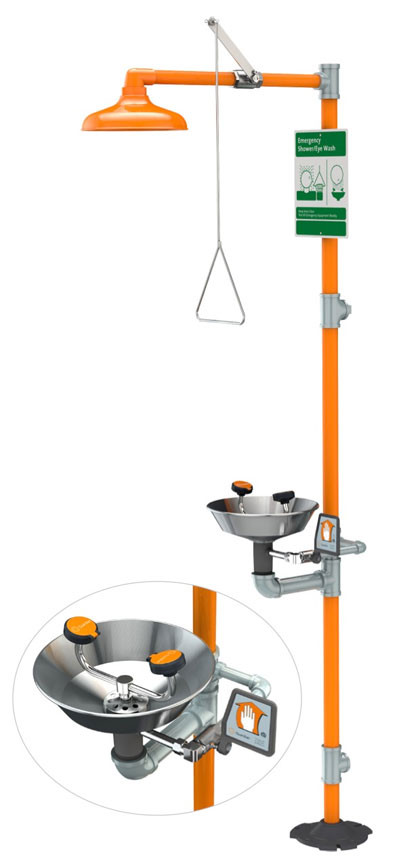

guardian-badge.jpgThe Guardian Equipment G1950 series of safety stations incorporates a safety shower with a rugged ABS plastic head and an eyewash with two FS-Plus™ sprayheads and stainless steel bowl. This unit is available with a variety of options. Some of the more popular single option models are:

  • G1950BC has an integrated stainless bowl cover
  • G1950HFC has integrated hand and foot controls
  • G1950HS adds a auxilliary drench hose
  • G1950P features orange ABS plastic bowl in place of stainless steel
  • G1950PCC has a polished chrome construction for an attractive appearance

Similar models are the G1909 series which provides similar eye/face wash capability using four smaller GS-Plus™ series spray heads and the G1902 series which has only two GS-Plus™ spray heads rather than four.   A wide variety other safety stations with ADA access, corrosion resistance, freeze/scald protection and more are also available in the Guardian line.

Features Options

Application: Combination eye/face wash and shower safety station. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

Shower Head: 10" diameter orange ABS plastic.

Shower Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water.

Eyewash Bowl: 11-1/2" stainless steel.

Eyewash Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Pipe & Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.

Supply: 1-1/4" NPT female top or side inlet.

Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 9-1/4" or 19-5/8" above finished floor by reversing lower pipe nipples.

Sign: Furnished with ANSI-compliant identification sign, item # 250-008G.

Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

AP250-015 Modesty curtain for mounting on safety station.

AP275-100 Electric Light and alarm horn summon assistance when eye/face wash or shower is activated.

BC Stainless steel eyewash bowl cover

FC20 Regulates shower flow rate to 20 GPM.

GC Powder coated finish on galvanized pipe and fittings. Available colors include orange, yellow, red and green.

GRN Green ABS plastic shower head.

HFC Hand and foot control enables eyewash activation via a foot treadle.

HS Auxiliary drench hose for rinsing user’s eyes, face or body.

P Subsitute an ABS plastic bowl for the stainless steel eyewash bowl.

PCC Unit is constructed of polished chrome plated brass pipe, fittings and components for attactive appearance and superior durability.

SSH Stainless steel shower head.

YEL Green ABS plastic shower head.

Application Note

An optional G3800LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.

Documentation available: Specification sheets for the G1950, G1950BC, G1950HFC, G1950HS, G1950P, and G1950PCC, an installation, operation and maintenance guide, and written specifications (Word format) for the G1950G1950BCG1950HFCG1950HSG1950P, and G1950PCC

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 33" x 17" x 9" (84 x 43 x 23 cm) weighing approximately 42 pounds (19 kg). The freight class is 85. The G1950BC ships in a box approximately 17" x 45" x 10" (43 x 114 x 26 cm) weighing 49 lb (22.2 kg).



Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
