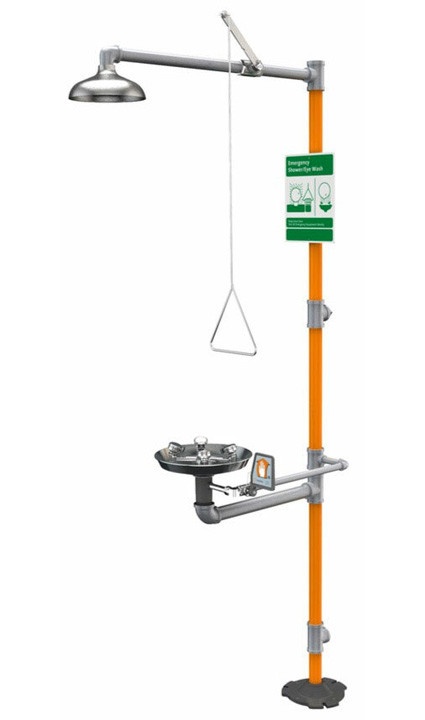

  • A photograph of a gbfvr1909 Guardian vandal-resistant safety station wit Widearea™ eye/face wash and stainless steel bowl.
  • A closeup photograph of the eye/face wash assembly of the GBFVR1909 Vandal-Resistant Safety Station.

Guardian GBFVR1909 Vandal-Resistant Safety Station w/ WideArea™ Eye/Face Wash and Stainless Steel Bowl

Item #: GBFVR1909

Normal Availability: 4-6 business days

Product Description

The Guardian Equipment GBFVR1909 is a vandal-resistant combination eye/face wash and safety shower station ideal for use in schools and other areas where equipment may be subject to abuse. All threaded connections are secured with set screws or cement to prevent disassembly. The GVR1903 is a similar model however it is not barrier-free for ADA compliance and has only 2 spray heads which give it eyewash but not face wash capability.

NOTE: This model is the recommended replacement for the GBFVR1909SC which was identical but had self-closing valves. Guardian no longer manufactures self-closing valves as these do not meet ANSI standards.

Features Options

Application: A combination eye/face wash and shower safety station with vandal-resistant construction. Ideal for use in schools and other areas where equipment may be subject to abuse. All threaded connections are secured with set screws or cement to prevent disassembly. Four GS-Plus™ spray-type outlet heads deliver a flood of water for rinsing the eyes and face.

Shower Head: 8" diameter chrome plated cast brass shower head with 20 GPM flow control.

Shower Valve: 1" IPS chrome plated brass stay-open ball valve with stainless steel actuating arm and 47-1/2" stainless steel pull rod.

Spray Head Assembly: Four vandal-resistant GS-Plus™ spray heads, each with a brass body, stainless steel “flip top” dust cover, internal flow control and filter to remove impurities from water. The spray heads have a retaining ring with set screw to protect internal components.

Eyewash Bowl: 11-1/2" stainless steel.

Eyewash Valve: 1/2" IPS chrome plated brass stay-open ball valve.

Supply: 1-1/4" NPT female top or side inlet.

Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 9-1/4" or 19-5/8" above finished floor by reversing lower pipe nipples.

Sign: Furnished with ANSI-compliant identification sign, item # 250-008G.

Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

APBF250-015 Modesty curtain for mounting on safety station.

AP275-200 Electric Light and alarm horn summon assistance when eye/face wash or shower is activated.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation availableGBFVR1909 specification sheet, an installation, operation and maintenance guide, and written specifications (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg) and 470-005R replacement GS-Plus™ flow controls (6/pkg).

All Guardian items are manufactured in the USA. This item ships in a box approximately 33" x 17" x 9" (84 x 43 x 23 cm) weighing approximately 42 pounds (19 kg). The freight class is 85.

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
