- Guardian G1902 Series Safety Stations w/ Eyewash and Stainless Steel Bowl
CYBER SAVINGS: NIOSH-Approved N99 Masks for less than 60 cents! Get them now!

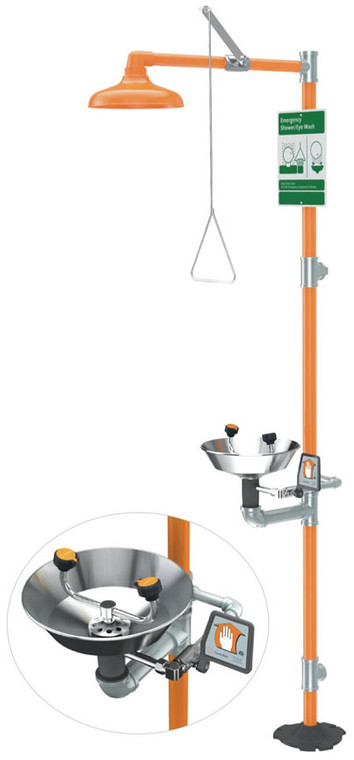

The Guardian Equipment G1902 series of safety stations incorporates a safety shower with a rugged ABS plastic head and an eyewash with two GS-Plus™ sprayheads and stainless steel bowl. This unit is available with a variety of options. Some of the more popular single option models are:
- G1902BC has an integrated stainless bowl cover
- G1902HFC has integrated hand and foot controls
- G1902HS adds a auxiliary drench hose
- G1902P features orange ABS plastic bowl in place of stainless steel
- G1902PCC has a polished chrome construction for an attractive appearance
Similar models are the G1909 series which has four GS-Plus™ spray heads on the eyewash to provide full coverage to the face, and the G1950 series which accomplishes the same task using two larger FS-Plus™ series spray heads. A wide variety other safety stations with ADA access, corrosion resistance, freeze/scald protection and more are also available in the Guardian line.
Application: Combination eyewash and shower safety station. Two GS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes.
Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.
Shower Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from water.
Eyewash Bowl: 11-1/2" stainless steel.
Eyewash Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.
Supply: 1-1/4" NPT female top or side inlet.
Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 9-1/4" or 19-5/8" above finished floor by reversing lower pipe nipples.
Sign: Furnished with ANSI-compliant identification sign, item # 250-008G.
Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
AP250-015 Modesty curtain for mounting on safety station.
AP275-100 Electric Light and alarm horn summon assistance when eye/face wash or shower is activated.
BC Stainless steel eyewash bowl cover
GC Powder coated finish on galvanized pipe and fittings. Available colors include orange, yellow, red and green.
GRN Green ABS plastic shower head.
HFC Hand and foot control enables eyewash activation via a foot treadle.
HS Auxiliary drench hose for rinsing user’s eyes, face or body.
P Substitute an ABS plastic bowl for the stainless steel eyewash bowl.
PCC Unit is constructed of polished chrome plated brass pipe, fittings and components for attractive appearance and superior durability.
SSH Stainless steel shower head.
YEL Green ABS plastic shower head.
An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
Documentation available: Specification sheets for the G1902, G1902BC, G1902HFC, G1902HS, G1902P, and G1902PCC, an installation, operation and maintenance guide, and written specifications (Word format) for the G1902, G1902BC, G1902HFC, G1902HS, G1902P, and G1902PCC
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. This item ships in a box approximately 33" x 17" x 9" (84 x 43 x 23 cm) weighing approximately 42 pounds (19 kg). The freight class is 85. The G1902BC ships in a box approximately 17" x 45" x 10" (43 x 114 x 26 cm) weighing 49 lb (22.2 kg).
2-year limited manufacturer warranty.
