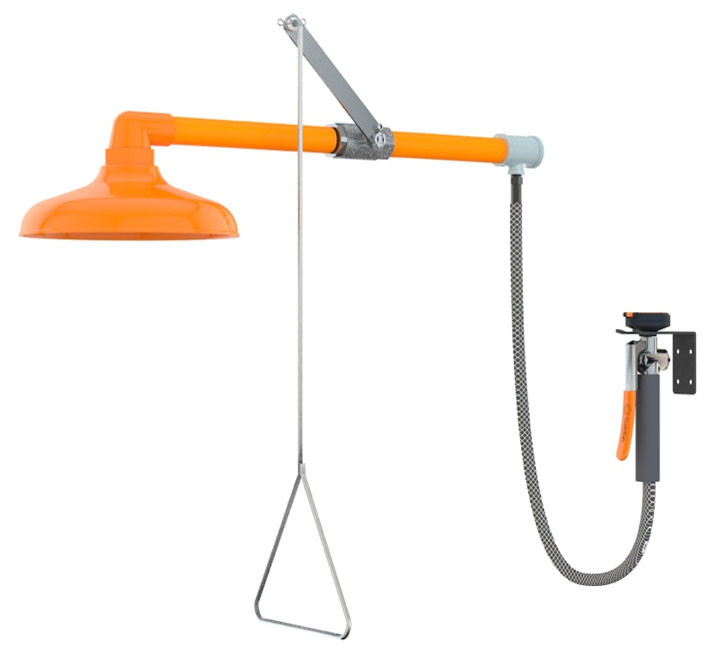

  • A photograph of an orange Guardian G1641 horizontally mounted Emergency Shower with Drench Hose.
  • A photograph of a green Guardian G1641GRN horizontally mounted Emergency Shower with Drench Hose.
  • A photograph of a yellow Guardian G1641YEL horizontally mounted Emergency Shower with Drench Hose.

Guardian G1641 Emergency Shower with Drench Hose, Horizontally Mounted, Plastic Shower Head

Item #: G1641
Quantity:
$529.75

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G1641 combines a horizontally-mounted overhead safety shower along with a drench hose for rinsing additional areas of the face and body. The shower unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. Options include orange, yellow and green ABS plastic, polished chrome-plated brass, and stainless steel shower heads. The drench hose has an 8 foot reinforced PVC hose with self-closing valve.  For a horizontally mounted shower like this without the drench hose see model G1643.

Features Options

Application: Emergency shower for horizontal mounting with auxiliary hand-held drench hose unit.

Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.

Valve: 1" IPS chrome plated pass stay-open ball valve. Valve is US-made with chrome plated pass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

Valve: 1" IPS chrome plated pass stay-open ball valve. Valve is US-made with chrome plated pass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

Pipe and Fittings: 1" IPS galvanized steel with orange ABS plastic elbow.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor. This unit should therefore not be installed in ceilings over 8 feet. For higher ceiling heights, we recommend the G1658 shower.

AP250-015 Modesty curtain for horizontal shower installation.

GRN Safety green ABS plastic shower head.

PCC All-polished chrome plated pass construction.

SSH Stainless steel shower head

YEL Safety yellow ABS plastic shower head.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G1641 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts330-12-08RSE-OR orange plastic street elbow and AP450-032ORG orange ABS plastic shower head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 31" x 11" x 5" (79 x 28 x 13 cm) weighing approximately 11 pounds (5 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
