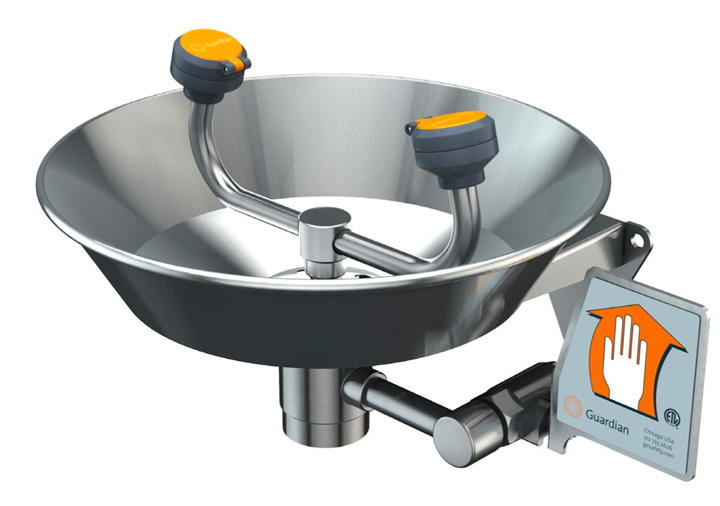

- Guardian G1891 Eyewash, Wall Mounted, All Stainless Steel
)
Product Description
The Guardian Equipment G1891 is a completely stainless steel eyewash for superior corrosion resistance. Similar non-stainless models are the G1814 which has a stainless steel bowl, the G1814P which is identical except it comes with an orange, yellow or green plastic bowl ,and the G1724 which features four GS-Plus™ spray heads rather than two for complete rinsing of the eyes and face. Additional corrosion-resistant and ADA-compliant models are also available.
| Features | Options |
|
Application: Eyewash for wall mounting. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and clean room applications. Two GS-Plus™ spray-type spray heads deliver a flood of water for rinsing eyes. Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals. Bowl: 11-1/8" diameter stainless steel. Mounting: Heavy duty stainless steel wall bracket. Supply: 1/2" NPT female inlet. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. |
BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated. T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection. TP 1 1/2" OD chrome plated brass tailpiece. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes. |
Documentation available: G1891 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 470-004R filters (inspect regularly and change as needed) and AP470-001 replacement GS-Plus spray head.
All Guardian items are manufactured in the USA. This item ships in a box approximately 15" x 15" x 14" (38 x 38 x 35.6 cm) weighing approximately 10 pounds (4.5 kg).
Warranty Information
2-year manufacturer limited warranty.
