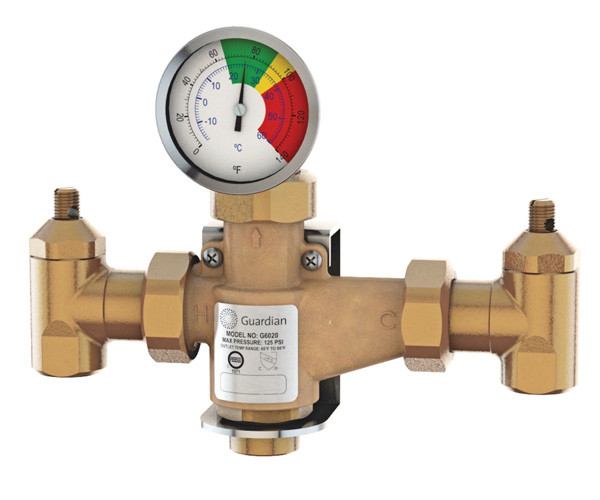

  • A photo of the G6020 Thermostatic Mixing Valve.

Guardian G6020 Tempering Valve, 13 Gallon (49 Liter) Per Minute Capacity

Item #: G6020
Quantity:
$509.00

Normal Availability: 1-2 business days

Product Description

The Guardian G6020 Thermostatic Mixing Valve (TMV or tempering valve) is ideal for providing the tepid water required for eyewash and drench hose stations per ANSI Standard Z358.1-2014. This unit is available in four additional configurations which include your choice of  surface or recess mounted cabinets in powder-coated steel or stainless steel.

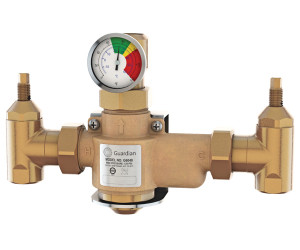

The G6040 is a larger capacity unit (50 gallons = 189 liters per minute) suitable for showers and combination safety stations.

The G6020 and G6040 are the next-generation replacements for older style TMV's and have several important advantages:

  • Higher capacities; only two sizes are required for the entire product line.
  • A lower pressure drop at key flow rates.
  • Better technology. The precision wax element provides years of hassle-free operation compared to older bi-metal coils which need frequent maintenance and potentially expensive repair kits.
  • Lower initial as well as maintenance costs.

Application: This thermostatic mixing valve blends hot and cold water to deliver tepid water. The valve has a flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. The valve can be used to supply emergency eyewash, eye/face wash or drench hose units. Depending on the water supply size and pressure, the valve can supply multiple units.

Mounting: The valve inlets can be positioned on the top, back or bottom of the valve. The outlet can be on the top or bottom. The valve can be configured in the field for any mounting position and is furnished with a heavy duty stainless steel mounting bracket.

Temperature Control: This valve has precision thermal actuator that senses incoming water temperature and automatically blends water to the preset temperature. The valve is factory set to deliver 85 °F (29 °C) water. The desired temperature of the tepid water can be adjusted as required and then locked. The units comes furnished with dial temperature gauge to monitor the temperature of tepid water which includes color-coded green, yellow and red to indicate safe and unsafe operating temperatures.

Cold Water Bypass: If the supply of hot water is restricted or interrupted, an internal bypass allows the valve to deliver cold water only. In bypass mode, the valve delivers 9 GPM (34 L/min) at 30 PSI (2.1 bar) pressure drop.

Hot Water Shutoff: The valve has an internal PTFE valve seat. If the supply of cold water is interrupted, the valve will close completely and not deliver any water at all, eliminating any possibility of scalding in the event of cold water failure.

Checkstops/Filters: Each inlet has a lockable shutoff valve for maintenance, an internal check valve to prevent backflow, and a stainless steel basket filter to remove debris from the water flow.

Flow Capacity: Refer to chart below for flow capacity of valve at specified pressure drops:

System Pressure Drop (psi) 1 5 10 15 20 25 30 35 40
Flow Rate (GPM) 3 5 7 8 10 11 13 13 14
Bypass Flow Rate (GPM) 3 4 5 6 7 8 9 9 10

System Pressure Drop (bar) 0.1 0.3 0.7 1.0 1.4 1.7 2.1 2.4 2.8
Flow rate (L/min) 11 19 26 30 38 42 49 49 53
Bypass Flow Rate (L/min) 11 15 19 23 26 30 34 34 38

Construction: This valve meets the requirements of the U.S. Safe Drinking Water Act as lead-free.

Inlet/Outlet: 1/2” NPT female inlets and outlet are standard.

Quality Assurance: This valve is ASSE certified under ANSI/ASSE 1071. Each valve is fully assembled and factory tested prior to shipment.

Water Pressure/Temperature Requirements

Supply Pressure: The maximum incoming water pressure is 125 PSI (8.6 bar). The pressure of the hot and cold water supplies can vary up to 25% and still deliver the flow and temperature required by ANSI/ASSE 1071.

Hot Water Supply Temperature: The incoming hot water temperature range is 120 to 180 °F (49 to 82 °C). Guardian recommends that the hot water temperature not exceed 140 °F (60 °C).

Cold Water Supply Temperature: The incoming cold water temperature range is 40 to 70 °F (4 to 21 °C). The cold water temperature must be at least 10° F (5.6 °C) less than the temperature of the delivered tepid water.

Tepid Water Temperature: The temperature of tepid water is adjustable within a range of 65 to 95 °F (18 - 35°C) and is locked in position once set. The high temperature limit stop is set at 90 °F (32 °C) to prevent mis-adjustment.

Options Available:

The following options are priced on demand. Note that installation of temperature and/or pressure gauges will change the rough-in dimensions of the valve:

CP Chrome plated finish instead of raw brass.

G G1/2 female thread on the inlets and outlet.

IP Pressure gauges on the hot and cold water inlets.

IT Temperature gauges on the hot and cold water inlets.

ITP Temperature and gauges on the hot and cold water inlets.

Application Note: Pursuant to ANSI Z358.1-2014, the water delivered by emergency equipment should be "tepid". Tepid is defined as moderately warm or lukewarm, and is generally considered to be between 60 °F (15 °C) and 100 °F (38 °C). However, in certain circumstances, a chemical reaction may be accelerated or otherwise affected by the water temperature. Please consult with a medical advisor to determine the optimum delivered water temperature prior to specifying, installing or using a tempering valve.

Tempering valves will not deliver the appropriate water temperature if the system has not been sized correctly. Please refer to the flow capacities and supply pressure requirements listed above when designing the tempered water system and selecting tempering valves.

Tempering valves, like all emergency eyewash and shower equipment, must be installed in accordance with the manufacturer’s instructions and maintained on a regular basis. Under ANSI Z358.1-2014, all emergency equipment should be activated weekly and inspected at least annually. Tempering valves should be treated the same and, in addition, must be regularly cleaned and cycled.


Documentation available:  G6020 specification sheet w/ measured drawings, written specifications (Word format), and the  G6020 installation, operation and maintenance guide.

Common replacement parts: With proper weekly cycling, these valves should give you years of trouble-free service. If you encounter an issue, contact Guardian Technical Support to troubleshoot. If the factory identifies an component issue, we can special order any parts you may require.

Shipping weight - 7 lb (3.2 kg).

Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
