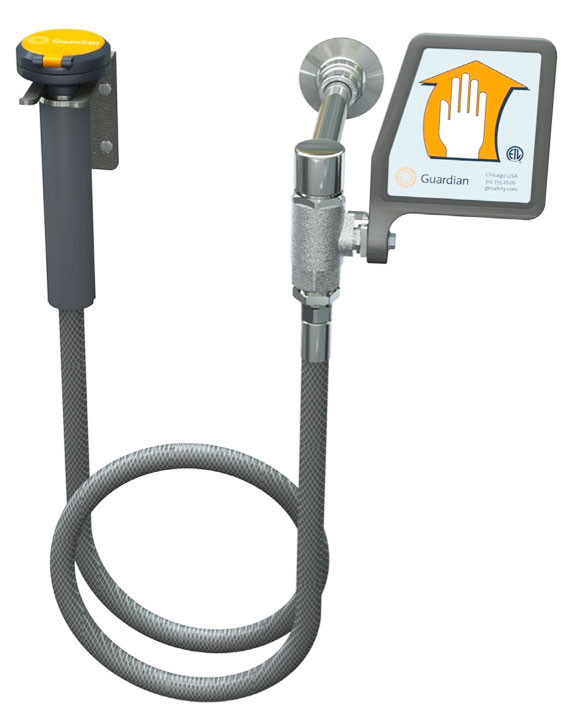

  • A photograph of the Guardian G5012 Drench Hose Unit, Wall Mounted w/ Flag Activation Handle.

Guardian G5012 Drench Hose Unit, Wall Mounted w/ Flag Activation Handle

Item #: G5012
Quantity:
$284.50

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G5012 is a wall mounted single-head drench hose that has a wall-mounted spray head that can be easily removed as well as a separate wall-mounted flag activation handle that stays on until manually closed. The G5018 has a similar design with different spray bracket and hose design and the G5025 is similar but with activation through a lever on the spray head itself instead of being separate.

Features Options

Application: Drench hose unit for wall mounting. Ideal for rinsing any part of user’s eye, face or body. Note: Under ANSI Z358.1 - 2014, drench hose units supplement, but do not replace, other types of emergency equipment. If you require eyewash protection, consider a two-head eyewash/drench hose combination unit instead.

Spray Head: Single FS-Plus™ spray head. Spray head has “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Hose: 8' reinforced PVC hose. 300 PSI maximum working pressure.

Supply: 3/8" NPT female inlet.

Mounting: Wall mounted hook holds unit on wall.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

BP In-line dual check backflow preventer installed on inlet of hose. Note: Check with code authority for compliance with local plumbing code.

FSH 8 ft. flexible stainless steel hose in place of PVC hose.

VB In-line vacuum breaker for installation between valve and spray head.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G5012 specification sheet w/ measured drawings, installation, opertion and maintenance guide, and written specifications (Word format).

Common replacement parts470-0024R replacement FS-Plus™ foam filters (6/pkg), 470-0025R replacement FS-Plus™ flow controls (6/pkg), and AP470-0021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 4 pounds (1.8 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
