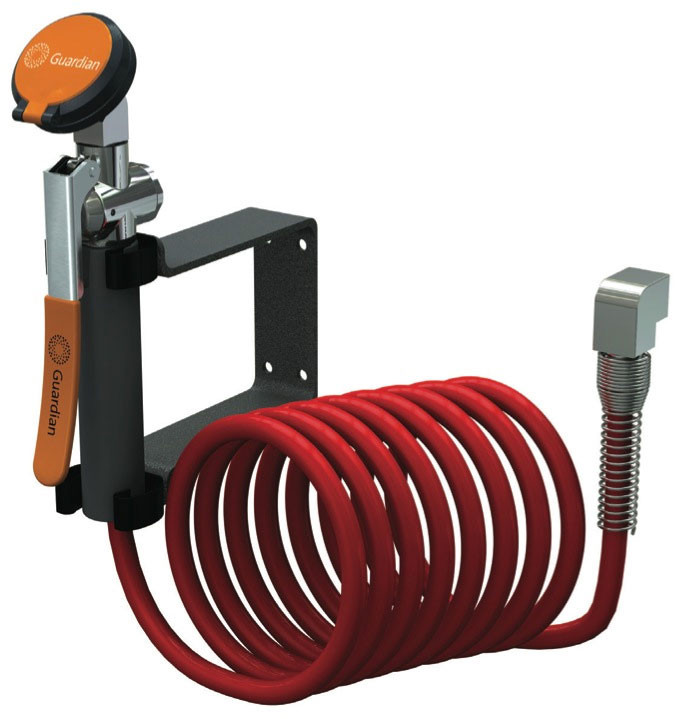

Guardian G5016 Drench Hose Unit, Wall Mounted

Item #: G5016
Quantity:
$332.00

Availability: 1-2 business days

Product Description

The Guardian Equipment G5016 is a wall mounted single-head drench hose that is activated by squeezing the handle of the wall-mounted spray head. The spray head is easily removed from the mounting bracket to rinse the eyes, face, body or even equipment. The G5018 is similar but is activated using a separate wall-mounted flag activation handle that stays on until reset. The G5046 is also similar but has two spray heads so it meets ANSI standards as an eyewash.

Features Options

Application: Drench hose unit for wall mounting. Ideal for rinsing any part of user’s eye, face or body. Note: Under ANSI Z358.1 - 2014, drench hose units supplement, but do not replace, other types of emergency equipment. If you require eyewash protection, consider a two-head eyewash/drench hose combination unit instead.

Spray Head: Single FS-Plus™ spray head. Spray head has “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.

Hose: 12' reinforced nylon retractable coiled hose. 180 PSI maximum working pressure.

Supply: 3/8" NPT female inlet.

Mounting: Bracket with spring clips to hold unit on wall. Clips position spray head and handle to face forward at all times.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

BP In-line dual check backflow preventer installed on inlet of hose. Note: Check with code authority for compliance with local plumbing code.

DC Stainless steel dust cover for each spray head.

LC Locking clip for valve handle. Valve stays open until locking clip is released.

VB In-line vacuum breaker for installation between valve and spray head.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G5016 specification sheet w/ measured drawings, installation, opertion and maintenance guide, and written specifications (Word format).

Common replacement parts470-0024R replacement FS-Plus™ foam filters (6/pkg), 470-0025R replacement FS-Plus™ flow controls (6/pkg), and AP470-0021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 4 pounds (1.8 kg) and the approximate shipping dimensions are 13" x 9" x 9" (33 x 23 x 23 cm).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
