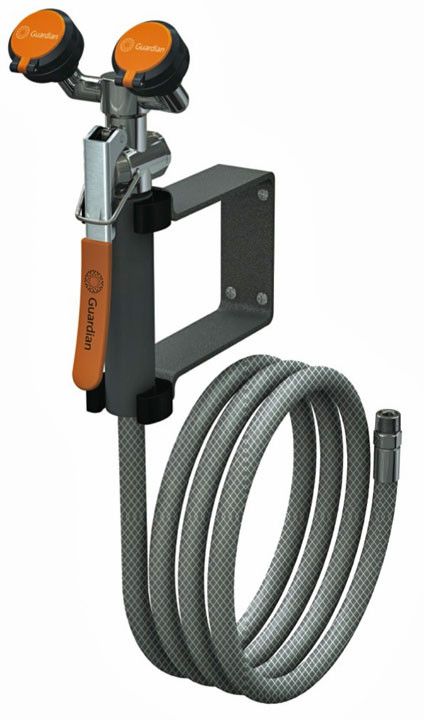

Guardian G5026 Eyewash/Drench Hose Unit, Wall Mounted

Item #: G5026
Quantity:
$272.00

Availability: 1-2 business days

Product Description

The Guardian Equipment G5026 is a wall mounted combination drench hose and eye wash that has a wall-mounted spray head assembly with integral activation lever that can be easily removed to rinse the eyes, face, body or even equipment. The G5010 is similar but is unmounted. The G5046 is similar but features a longer hose and different mounting bracket.

Features Options

Application: Dual purpose eyewash/drench hose for wall mounting. Unit meets the provisions of ANSI Z358.1 - 2014 as both an eyewash and a drench hose. Unit may be left in the mounting bracket for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.

Spray Head Assembly: Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing “hands free” operation. Valve stays open until locking clip is released.

Hose: 8' reinforced PVC hose. 300 PSI maximum working pressure.

Supply: 3/8" NPT male swivel-type inlet.

Mounting: Bracket with spring clips to hold unit on wall. Clips position spray heads and handle to face forward at all times.

Backflow Preventer: In-line dual check backflow preventer installed on inlet of hose (G5026BP only). Note: Check with code authority for compliance with local plumbing code.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

AP400-015 3/4-inch garden hose inlet adapter to connect the unit to a standard garden hose.

BP In-line dual check backflow preventer installed on inlet of hose. Note: Check with code authority for compliance with local plumbing code.

DC Stainless steel dust cover for each spray head.

FSH 8 ft. flexible stainless steel hose in place of PVC hose.

VB In-line vacuum breaker for installation between valve and spray head.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G5026 specification sheet w/ measured drawings, installation, opertion and maintenance guide, and written specifications (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 4 pounds (1.8 kg) and the approximate shipping dimensions are 12" x 11" x 4" (30.5 x 28 x 10 cm).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
