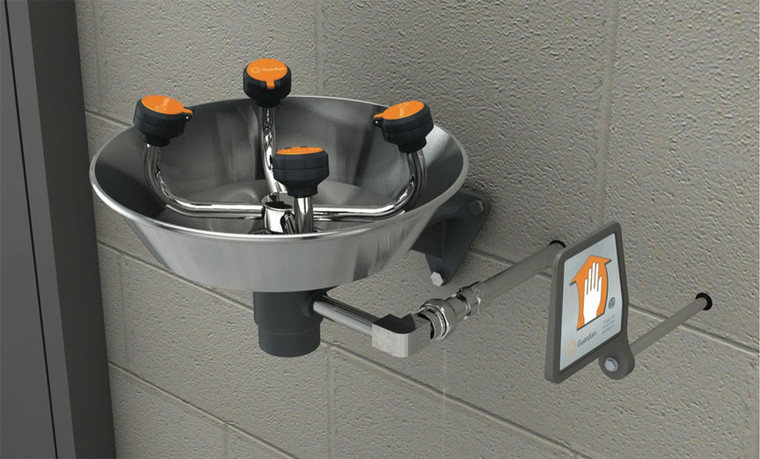

- Guardian GFR1724 Freeze-Resistant WideArea™ Eye/Face Wash, Wall Mounted, Stainless Steel Bowl
)
Product Description
The Guardian Equipment GFR1724 eye and face wash is freeze resistant because the valve and supply are situated within the heated envelope of the building and the system drains completely after use. You must specify the wall thickness at the time of order. This unit is ideal for extreme cold and outdoor locations. Similar models are the GFR1814 which is identical except that it has only two spray heads, and the GFR1704 which is a freeze-resistant pedestal-mounted eye/face wash.
| Features | Options |
|
Application: Freeze-resistant WideArea™ eye/face wash for wall mounting. Valve and supply line are located behind wall in heated area to prevent freezing. Self-draining valve permits water to drain completely from unit after use. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2014. See Tempering Units section for more information. Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover and internal flow control. Valve: 1/2" IPS chrome plated brass three-way self-draining stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Valve has 1/2” NPT drain port. Valve handle is mounted on extension rod that projects through wall. Specify wall thickness when ordering. Supply: 1/2" NPT female inlet. Bowl: 11-1/8" diameter stainless steel. Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-006G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. |
GRN Green ABS plastic bowl. P Orange ABS plastic bowl. TP 1 1/2" OD Chrome plated brass tailpiece. Y Yellow ABS plastic bowl. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: GFR1724 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. Approximate shipping weight is 14 pounds (6.4 kg).
Warranty Information
2-year manufacturer limited warranty.
