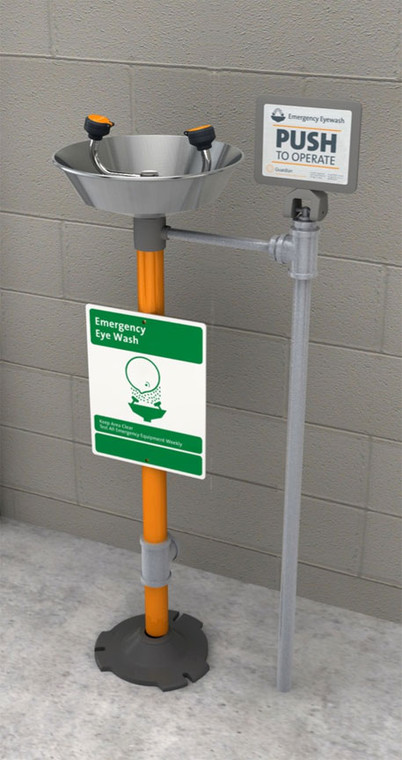

Guardian GFR1825 Freeze-Resistant Eyewash, Pedestal Mounted, Stainless Steel Bowl

Item #: GFR1825
Quantity:
$900.00

Availability: 3-5 business days

Product Description

The Guardian Equipment GFR1825 eye wash is freeze resistant because the valve and supply are buried below the frost line and the system drains completely after use. You must determine and specify the bury depth for the valve at the time of order. This unit is ideal for extreme cold and outdoor locations. The GFR1704 is identical except that it has four spray heads, permitting the user to wash the entire face and eyes. The GFR1814 is similar to the GFR1825 but is wall-mounted.

Features Options

Application: Freeze-resistant eyewash for pedestal mounting. Freeze-resistant valve and supply line are buried below frost line to protect against freezing. Unit is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2014. See Tempering Units section for more information.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover and internal flow control.

Valve: 3/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Specify bury depth of valve when ordering.

Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.

Supply: 3/4" NPT female inlet.

Bowl: 11-1/8" diameter stainless steel.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

DC Stainless steel dust cover for each spray head.

GRN Green ABS plastic bowl.

P Orange ABS plastic bowl.

YEL Green ABS plastic bowl.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  GFR1825 specification sheet w/ measured drawings, installation, opertion and maintenance guide, and written specifications (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 35 pounds (15.9 kg).

Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
