Badger CD100-2 Carbon Dioxide 100 lb Wheeled Fire Extinguisher

Product Description

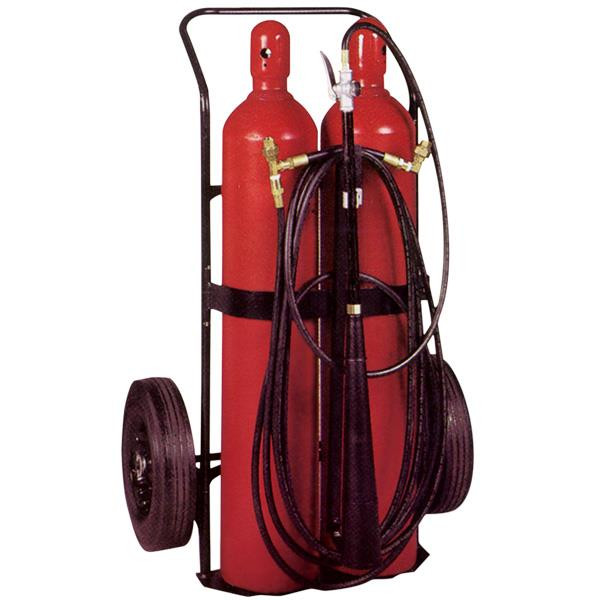

Badger's CD100-2 wheeled carbon dioxide (CO₂) fire extinguishers are extremely versatile and ready to tackle flammable liquid and electrical fire hazards (Classes B and C). They are ideally suited for indoor use on delicate equipment or processes as computer rooms, scientific instruments or any other application that requires a clean, no-residue extinguishing agent.

This unit features a 40' (12.2 m) hose, a heavy-duty hand wheel activation valve, 16" (41 cm) semi-pneumatic tires, a quick-release discharge nozzle retainer, and a heavy-duty industrial discharge valve and nozzle. This unit is UL listed, meets DOT requirements, and comes with a 6-year manufacturer warranty. The cylinders have a five year hydrostatic test requirement.

For great performance in a more maneuverable unit, consider the 50 lb Model CD50-2, item # 09505.

The Safety Data Sheet (SDS) for the CO2 agent is available for download as is the Badger wheeled CO2 specification sheet.

Specifications:

Badger Model #	CD50-2	CD100-2
Badger Part #	22724	22725
Agent	50 lb (22.7 kg) CO₂	100 lb (45.4 kg) CO₂
UL Fire Rating	20-B:C	20-B:C
Hose Length	15' (4.6 m)	40' (12.2 m)
Operating Temperature	-22 to 120 °F (-30 to 48.9 °C)
Agent Flow Rate	N/A
Discharge Time	30 seconds	60 seconds
Maximum Effective Range	10 ft (3.85 m)	10-15 ft (3.65 to 4.57 m)
Height	52" (132.1 cm)	52" (132.1 cm)
Width	21.5" (54.6 cm)	32" (81.3 cm)
Depth	33" (83.4 cm)	33" (83.4 cm)
Shipping Weight	271 lb (123 kg)	446 lb (202 kg)
US Coast Guard Classification	N/A
