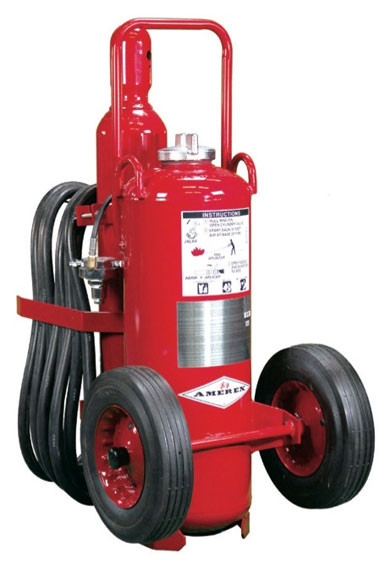

  • A photograph of a 09562 amerex regulated pressure wheeled fire extinguishers with semi-pneumatic wheels.
  • A photograph of a 09562 amerex regulated pressure wheeled fire extinguishers with solid steel wheels.

Amerex Regulated Pressure Wheeled Fire Extinguishers

Item #: 09562

Normal Availability: 1-2 weeks

Product Description

These Amerex commercial Regulated Pressure extinguishers utilize a 110 ft3 nitrogen cylinder with pressure regulator and come in two wheel options. This older, traditional design allows for adequate pressure to assure a smooth and complete discharge of the dry chemical while maintaining a pressure reserve for blowing down the discharge hose. Choose either the 16" semi-pneumatic rubber tire or 36" X 2-1⁄2" steel wheels depending on whether you have a hard or soft surface where the unit is deployed.  Each is easy to transport and operate by one person. High performance versions of these models as well as stationary versions are available by special order.

Standard features include:

  • Stainless Steel Collars
  • Chrome Plated Brass Fill Caps • Brass Hose Fittings
  • Live Swivels on Discharge Valve
  • Heavy Duty Steel Cylinder, Carriage, Hose Rack
  • Lifting Eyes
  • Aluminum UL/ULC Bilingual (English/Spanish) Nameplates with Bar Code
  • Pictogram Instructional Label
  • DOT/TC Nitrogen Cylinder with Quick Opening Brass Valve
  • Chrome Plated Brass Regulator
  • 6 Year warranty


Specifications 125/150 lb Dry Chemical 300/350 lb Dry Chemical
Amerex Model # 467 468 469 470 471 472
Wheel Type Semi-pneumatic Solid steel
Agent Type ABC Regular Purple-K ABC Regular Purple-K
UL & ULC Rating 30A:240B:C 240B:C 320B:C 30A:240B:C 240B:C 320B:C
Capacity 125 lb (56.7 kg) 150 lb (68.0 kg) 125 lb (56.7 kg) 125 lb (56.7 kg) 150 lb (68.0 kg) 125 lb (56.7 kg)
Shipping Weight 404 lb (183 kg) 429 lb (195 kg) 404 lb (183 kg) 432 lb (196 kg) 457 lb (207 kg) 432 lb (196 kg)
Height 52" (132 cm)
Width 26" (66 cm) 28" (714 cm)
Depth 38" (972 cm) 459" (114 cm)
Discharge Time 48 seconds 53 seconds 52 seconds 48 seconds 53 seconds 52 seconds
Discharge Range 30 - 40 ft (9.1 - 12.2 m)
Operating Temp -65 to 120 °F (-54 to 49 °C)
Nitrogen Cylinder 110 cu ft (3,115 liters)
Hose Length 50 feet (15.2 m)
Hose Diameter 0.75 inches (1.90 cm)
Wheel Size 16" diameter x 4" w (40.6 x 10.2 cm) 36" diameter x 2.5" w (91.4 x 6.4 cm)
US Coast Guard Approved Yes
FM Approved No No Yes No No Yes

For BC fires, Purple-K can be up to twice as effective as Amerex "Regular" BC extinguishing agent. Consider Purple-K if you are protecting against fires involving large quantities of flammable liquids. Purple-K refill agent is also available as item # 09454.

Note: Extinguishing agents can be incompatible with a variety of common materials. Always check the manufacturer's Safety Data Sheet (SDS) before selecting or deploying a dry chemical fire extinguisher. Download: Amerex ABC SDS, Amerex Regular SDS, and Amerex Purple-K SDS.

These extinguishers are not eligible for free shipping - a fixed shipping price of $175 per unit will be added to your invoice at checkout which is valid only for ground shipment within the lower 48 US states. If you need rush delivery or delivery outside this area, you can contact us before ordering, otherwise, we will contact you with the actual freight costs before processing your order.

Other Details

Manufactured in: USA
