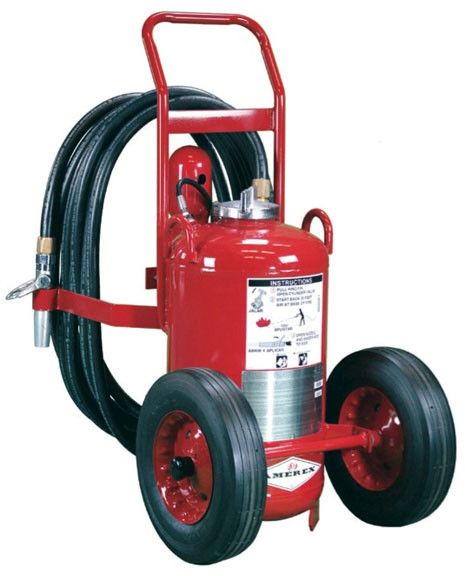

  • A photograph of a 09564 amerex direct pressure wheeled fire extinguisher with semi-pneumatic wheels.
  • A photograph of a 09564 amerex direct pressure wheeled fire extinguisher with solid steel wheels.

Amerex Direct Pressure Wheeled Fire Extinguishers

Item #: 09564

Normal Availability: 2 days to 2 weeks

Product Description

These Amerex commercial Direct Pressure extinguishers utilize a 23 ft3 nitrogen cylinder with a “quick opening brass valve” to pressurize and completely discharge the agent cylinder. The compact size and 16" semi-pneumatic tires allow easy maneuvering and operation by one person, through narrow doorways and aisles. A 4" stainless steel fill opening with rugged chrome plated brass cap makes servicing easier. For large hazards choose the 300 lb. ABC or Purple K or 350 lb. Regular Direct Pressure extinguishers with a “quick opening” 55 ft3 nitrogen cylinder. They provide quality and economical fire protection, large volume capacity for extra high hazard areas with single person transport and operation. The 36" X 6" wide steel wheels make movement possible in sandy or soft soil. High performance versions of these models as well as stationary versions are available by special order.

Standard features include:

  • Stainless Steel Collars
  • Chrome Plated Brass Fill Caps • Brass Hose Fittings
  • Live Swivels on Discharge Valve
  • Heavy Duty Steel Cylinder, Carriage, Hose Rack
  • Lifting Eyes
  • Aluminum UL/ULC Bilingual (English/Spanish) Nameplates with Bar Code
  • Pictogram Instructional Label
  • DOT/TC Nitrogen Cylinder with
  • Quick Opening Brass Valve • 6 Year Warranty
Specifications 125/150 lb Dry Chemical 300/350 lb Dry Chemical
Amerex Model # 450 451 452 491 492 493
Agent Type ABC Regular Purple-K ABC Regular Purple-K
UL & ULC Rating 30A:240B:C 240B:C 320B:C 40A:320B:C 320B:C 320B:C
Capacity 125 lb (56.7 kg) 150 lb (68.0 kg) 125 lb (56.7 kg) 300 lb (136.1 kg) 350 lb (158.8 kg) 300 lb (136.1 kg)
Shipping Weight 335 lb (152 kg) 360 lb (163 kg) 335 lb (152 kg) 743 lb (337 kg) 793 lb (359.7 kg) 743 lb (337 kg)
Height 45" (115 cm) 57" (144.8 cm)
Width 24" (61 cm) 34" (86.4 cm)
Depth 36" (92 cm) 39" (99.1 cm)
Discharge Time 52 seconds 60 seconds 53 seconds 60 seconds 70 seconds 67 seconds
Discharge Range 30 - 40 ft (9.1 - 12.2 m)
Operating Temp -65 to 120 °F (-54 to 49 °C)
Nitrogen Cylinder 23 cu ft (651 liters) 55 cu ft (1,557 liters)
Safety Burst Disc Range 400 - 500 psi (2760 - 3450 kPa)
Hose Length 50 feet (15.2 m)
Hose Diameter 0.75 inches (1.90 cm) 1 inch (2.54 cm)
Wheel Type Semi-pneumatic Solid steel
Wheel Size 16" diameter x 4" w (40.6 x 10.2 cm) 36" diameter x 6" w (91.4 x 15.2 cm)
US Coast Guard Approved Yes
FM Approved No No Yes No No Yes

For BC fires, Purple-K can be up to twice as effective as Amerex "Regular" BC extinguishing agent. Consider Purple-K if you are protecting against fires involving large quantities of flammable liquids. Purple-K refill agent is also available as item # 09454.

Note: Extinguishing agents can be incompatible with a variety of common materials. Always check the manufacturer's Safety Data Sheet (SDS) before selecting or deploying a dry chemical fire extinguisher. Download: Amerex ABC SDS, Amerex Regular SDS, and Amerex Purple-K SDS.

These extinguishers are not eligible for free shipping - a fixed shipping price of $200 per unit will be added to your invoice at checkout which is valid only for ground shipment within the lower 48 US states. If you need rush delivery or delivery outside this area, you can contact us before ordering, otherwise, we will contact you with the actual freight costs before processing your order.

Other Details

Manufactured in: USA
