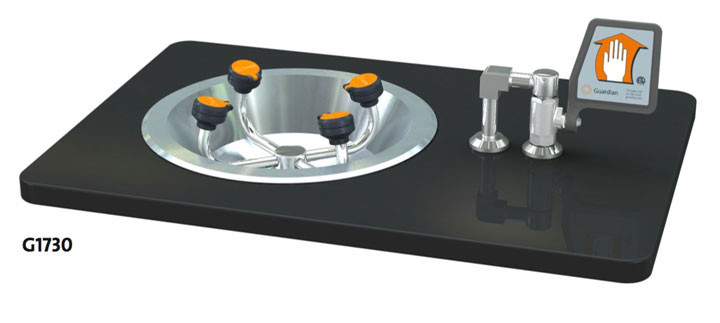

  • A photograph of a Guardian G1730 WideArea™ Eye/Face Wash, Recess Deck Mounted, Ball Valve with Flag Handle mounted in countertop (countertop not included).

Guardian G1730 WideArea™ Eye/Face Wash, Recess Deck Mounted, Ball Valve with Flag Handle

Item #: G1730

Normal Availability: 3-5 business days

Product Description

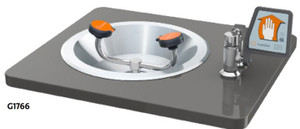

The Guardian Equipment G1730 includes a bowl which is mounted directly into your existing countertop and is activated with a flag handle. The G1727 is similar but is activated by a push-down valve. The G1766 is also similar but uses two FS-Plus™ spray heads to wash the eyes and face as is the G1808 which has two smaller GS-Plus™ spray heads which wash only the eyes.

Features Options

Application: WideArea™ eye/face wash for recessed mounting in countertop. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS brass stay-open ball valve. Valve is mounted above counter and activated by flag handle.

Bowl: 13" diameter flanged stainless steel bowl for recessed mounting in countertop. Furnished with all hardware necessary for installation in counter.

Supply: 1/2" NPT male inlet.

Waste: 1 1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection.

TP 1 1/2" OD chrome plated brass tailpiece.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G1730 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head, 150-014E-2 cast aluminum waste receptor.

All Guardian items are manufactured in the USA. This item weighs approximately 8 pounds (3.6 kg).


Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
